Using iDL300 Peripherals
The following illustrations demonstrate usage of some of the iDL300 peripherals.

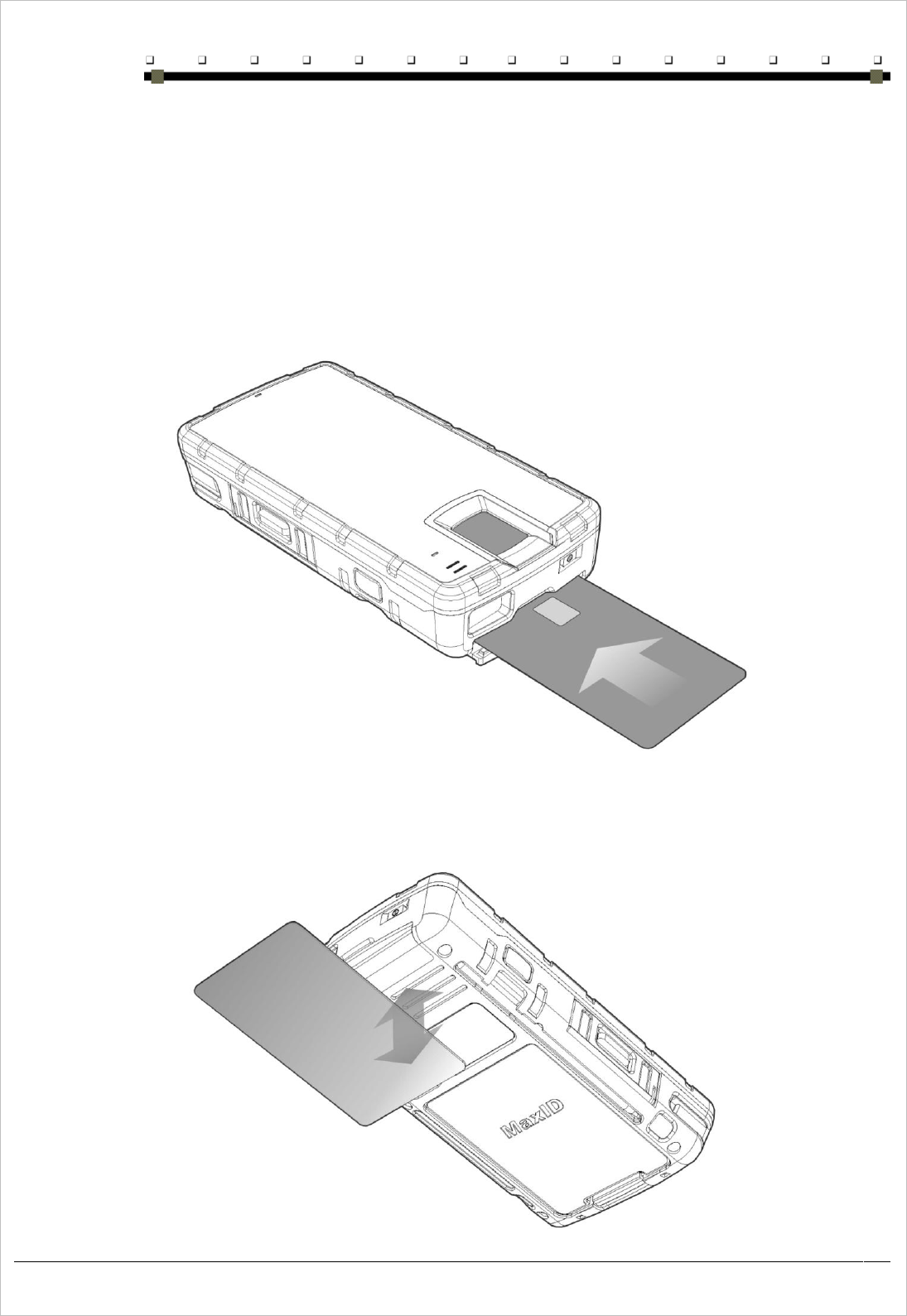

Contact Smart Card Reader
The iDL300 provides one contact smart card reader fitted to the front of the iDL300 device.
Open the Smart Card Reader rubber cover at the front of the iDL300 device and insert the card with the Smart Card Chip facing upward and inward
toward the device as illustrated below:
Contactless Smart Card Reader
Contactless Smart Cards can be read by holding the Contactless Smart Card parallel to the Contactless Smart Card Reader at the bottom of the
iDL300 device and at a distance of 10 cm or less from the reader as illustrated below.
