c. Use the CA hinges and thin CA adhesive to attach the ailerons to their wing panels. Using the supplied

control-horn bolts and backplates, attach the control horns to the ailerons.

d. Mount the aileron servos to the servo hatch covers.

Attach a 12-inch servo extension to each servo,

install a servo and attached extension in each wing

panel, and secure the aileron servo hatch covers

with 5/16-inch wood screws.

e. Use the supplied EZ Connectors to attach the

aileron pushrods between each aileron control

horn and its aileron servo.

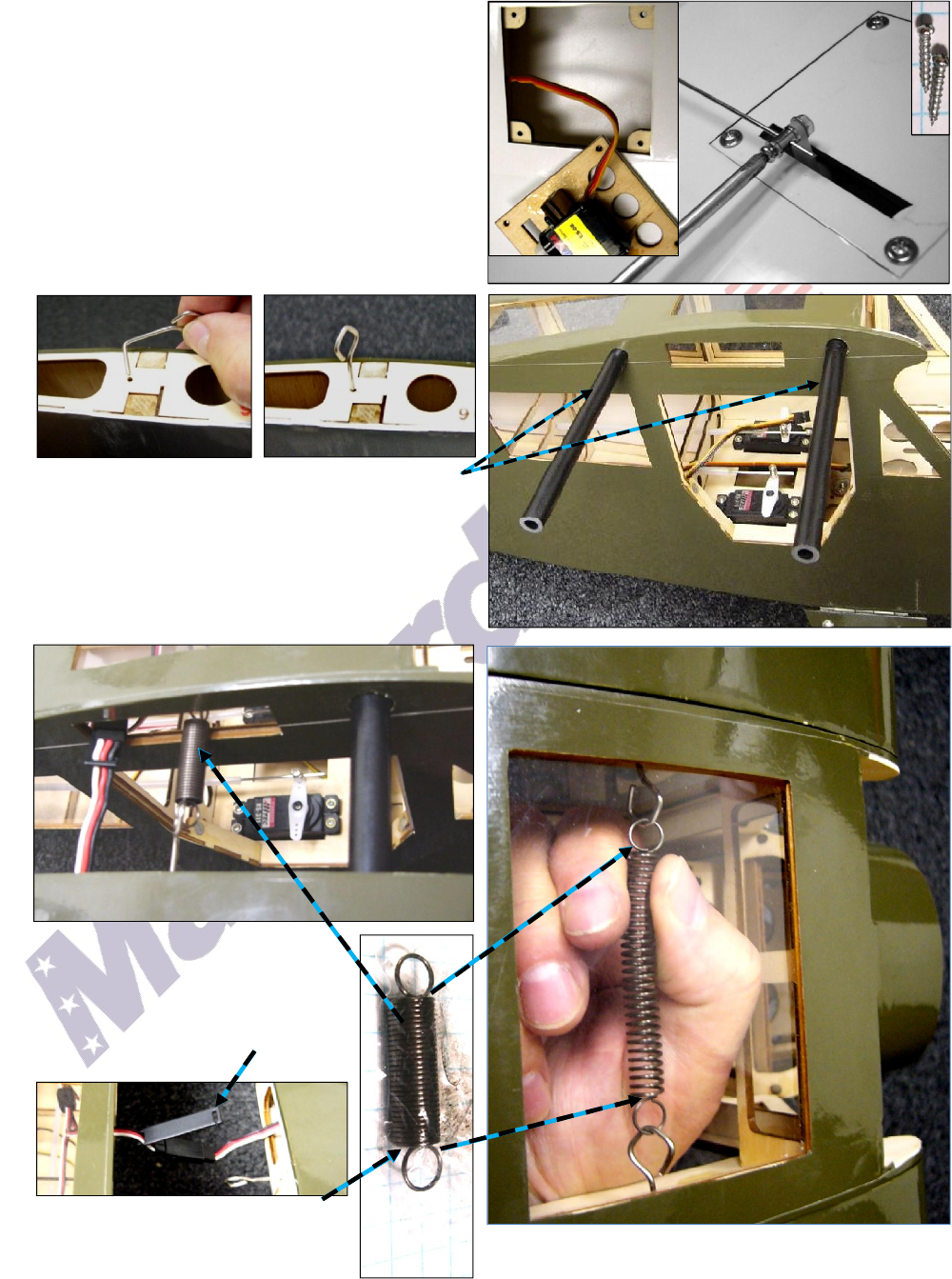

7. Mount the Wing –

a. Position and glue a spring retainer into the hole in

the root rib of each wing panel.

b. Insert both wingrods midway through the fuselage.

c. Connect a 12-inch Y-cable to the radio receiver’s

aileron port, then direct the two loose male ends of

the Y-cable toward the rectangular openings on

each the side of the fuselage.

d. Slide both wing panels onto the wing rods and

bring them toward the fuselage.

e. As each wing panel is moved close

to the fuselage, attach its aileron

extension to the aileron’s Y-cable.

(NOTE: We recommend you use

optional servo extension safety clips

for your safety.)

f. Connect one end of the coil-spring to

either one of the two spring retainers,

as shown above and at the right.

(

1/4

inch

squares)

(

1/4

inch

squares)

(NOTE: S

ee s

pring connection i

nstructions

at the top of the next page.)
