Instruction manual

/
· Optional upgrades: Dashboard, throttle control, dummy engine and floats.
· Options required for EP conversion: U35425 motor, 60A electronic speed
control (ESC), 2 ea. 3 cell 2100 mAh LiPo batteries, and connectors
to run the batteries in parallel and connect the batteries to the ESC.
IV. SPECIAL FEATURES:
· Fully operational top- and bottom-hinged cabin side doors with concealed
magnets to securely hold the doors open and closed.
· Prepainted fiberglass cowl, realistic looking windshield, top and side windows.
· Articulated landing gear with mains wheels, steerable tail wheel, and
stick-on scale markings.
· Quick-disconnect struts and easily removable two-piece wing panels
for easy transport and storage.
· Fuselage, wings and empennage are jig-assembled, laser-cut balsa and
light plywood.
· Designed with semi-symmetrical wing for better sport-scale aerobatic
performance.
· 95% preassembled ARF, designed for glow engine (with supplied engine mount
and fuel tank for .40-sized glow engine) and an available motor mounting box
for electric power operation.
· Optional upgrades: Prepainted detailed true-to-scale dashboard, throttle control,
dummy engine and floats. The dashboard and the throttle control are assembled
and painted here in the USA.
V. SPECIFICATIONS:
· Wingspan ................................................................................................................................. 70 inches
· Wing area .................................................................................................................... 718 square inches
· Length ...................................................................................................................................... 46 inches
· ARF weight ................................................................................................................. 4 pounds 8 ounces
· Power system .............................. 40-class 2-cycle glow engine (an engine mount and fuel tank included)
(Optional: Equivalent 4-cycle engine or electric power system)
· Propeller .......................................... 11 x 6/7 (or as recommended by the maker of your engine or motor)
· Radio (not included) ........................................................................................... Minimum of 4 channels
· Servos ........................................ 3 ea. standard and 2 ea. mini or equivalent servos (or 2 ea. standard and
2 mini servos plus an electronic speed control if you use an electric power system)
(Dimensions and weights are approximate.)
VI. ASSEMBLY INSTRUCTIONS:

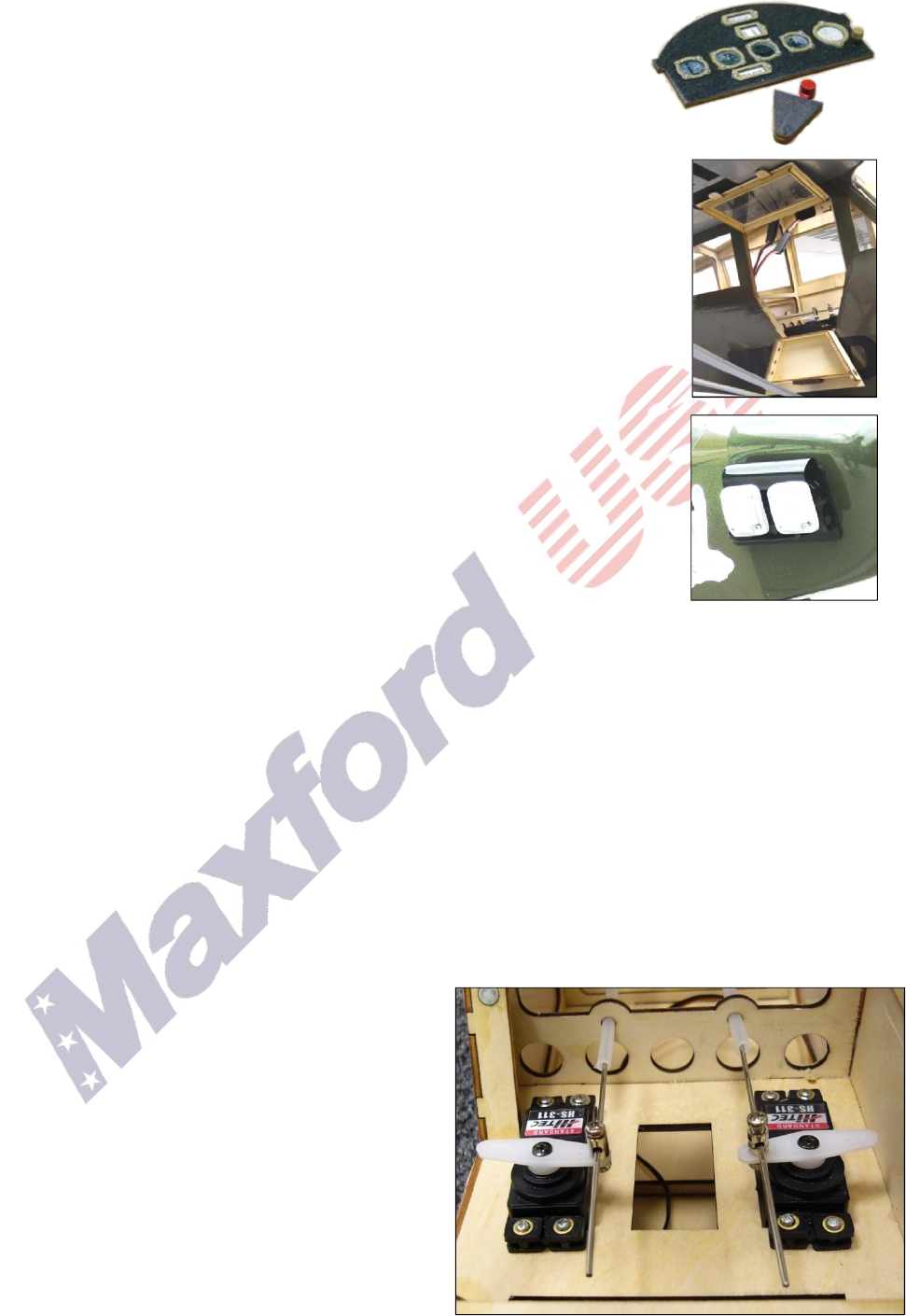

1. Fuselage-Mounted Servos –
a. Remove the built-up and covered fuselage from
its plastic bag.
b. Using hardware supplied with your servos,
install three servos in the servo tray (two servos
if you are using an electric power system).
c. Connect the EZ Link connectors to the servo
arms. Guide the EZ Link connectors onto the
rudder and elevator servos, and mount the servo
arms onto the servos.
d. Connect these servos to your receiver and
position the receiver behind the servos.
