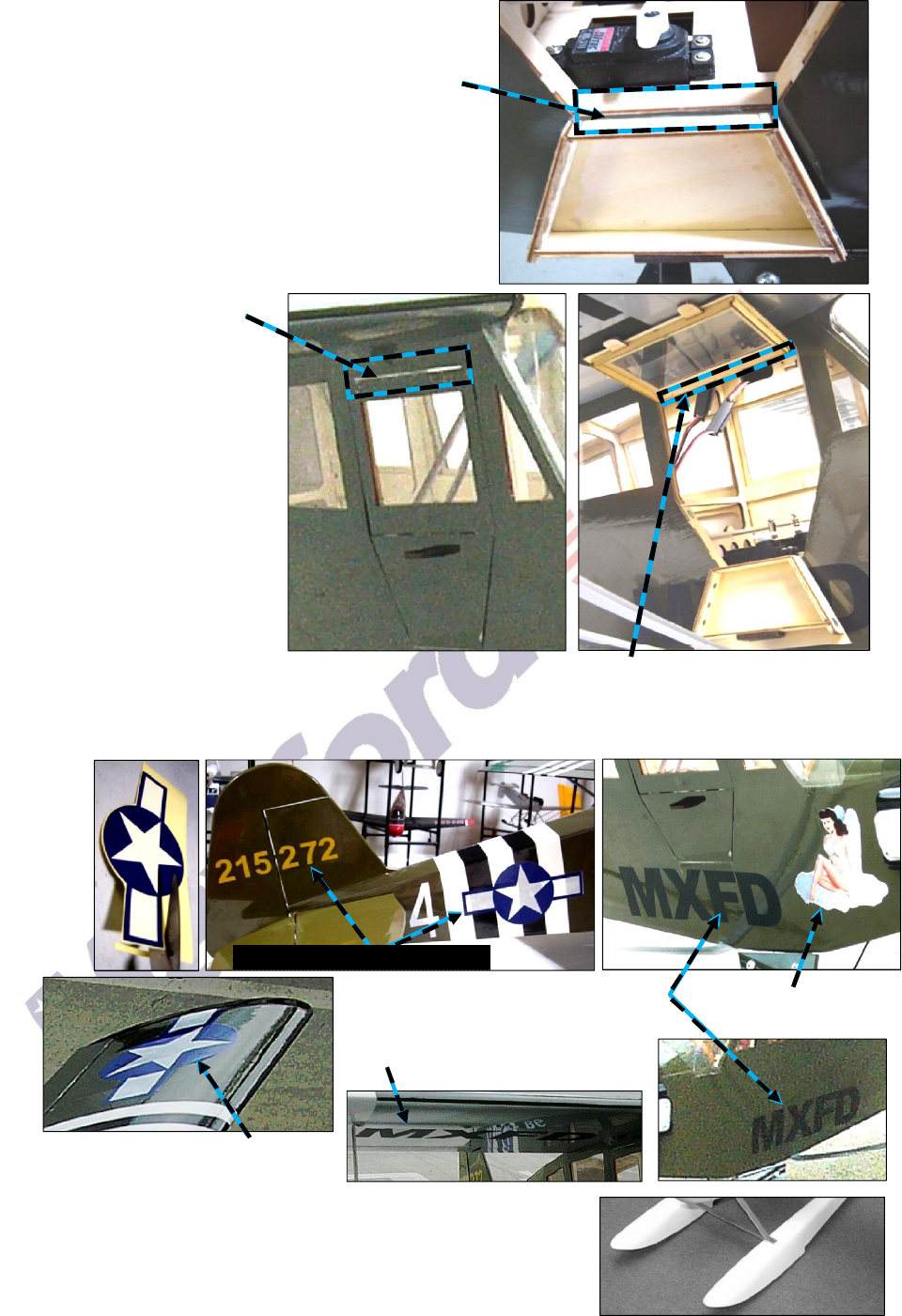

l. Fully open the lower door panel. Apply a second strip
of transparent tape to cover the full width of the lower
door panel, from the inside surface of the lower door
panel, across the ‘invisible hinge’ on the outside of
the door, and onto the floor of the servo tray inside
the cockpit.
m. With the lower door panel still open, place the upper
door panel in the top half of the opening, then close
the lower door panel to hold the upper door panel in
position.
n. Use transparent tape to make an ‘invisible hinge’ along
the entire width of the upper door panel on the outside
surface of the upper door
panel and the fuselage.
o. Fully open the door’s bottom
panel, then open the door’s
top panel. (NOTE: As the
upper door panel is brought
close to the bottom side of
the wing, a concealed magnet
holds the top door panel
open.)
p. Apply a second strip of
transparent tape covering the
full width of the upper door
panel, from the top inside
surface of the upper door
panel, across the ‘invisible hinge’ on the outside of the door, and onto the top of the door frame inside
the cockpit. (NOTE: When the door is closed, the door’s bottom panel captures the lower portion of the
door’s top panel. Always open the door’s bottom panel first, and always close the door’s top panel first.)
q. Apply the stick-on aircraft markings:
r. If you have access to a suitable body of water, you may replace the
fixed landing gear with a set of 40-sized Maxford USA floats.
(NOTE: All of this L-4 Grasshopper’s optional upgrade items may
also be purchased for use with the Maxford USA ARF
sport-scale model of the Piper J-3 Cub.)
