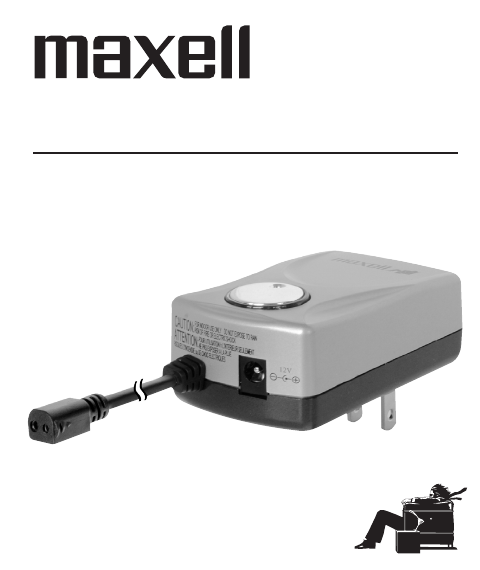

AC 3000 Digital Camera AC/DC Power Adapter User Manual
INTRODUCTION Congratulations! You have purchased one of the most innovative products on the market today. It is designed to output DC voltage from 3.3 to 8.4v by applying input voltage 100-240Vac or 12Vdc. • Compatible to a wide range of DC camera adapters refer to the compatibility list. • Wall plug-in operation from 100 – 240Vac (50 / 60 Hz). • Car Cigarette Adapter operation 10 – 14 Vdc. • Dedicated output tips (DC plug) are suited for different IT equipment.
Figure 1 A B C E D F AC 3000 Parts and Components A. Voltage Indicator D. Car Cigarette Plug input (12Vdc ) B. Power and polarity indicator E. AC input blades (100-240Vac ) C. Output Cord and Tips F.
ACCESSORIES United Kingdom/Hong Kong adapter European adapter Output Plugs Tips A B Tips A B C D E F G C D E F G Dimension : Outer diameter * Inner Diameter * Length 4.75 mm * 1.70 mm * 10.8 mm 4.00 mm * 1.70 mm * 10.8 mm 3.75 mm * 1.10 mm * 10.8 mm 3.00 mm * 1.10 mm * 11.6 mm 2.35 mm * 0.70 mm * 9.
OPERATING INSTRUCTIONS IMPORTANT: The following instructions must be read before using the adapter for the first time. This section explains how to select the output Tips and set the output voltage / polarity and power up the Adapter. Select the output Tips • Select the appropriate adapter tip for your digital camera. Choose the tip with correct dimension specified in the compatibility list, or checked by direct fitting the tip direct to the equipment without connecting to the output cable.
• After confirming the polarity and voltage required, rotate the Voltage Selector Knob at the bottom to the appropriate voltage range. Red marking – Center negative voltage Green/Blue marking – Center positive voltage Voltage Selector Knob • Plug the adapter into the wall outlet (100-240 Vac) or connect to the 12Vdc through the Cigarette Adapter. - Center Positive selection, Green or Blue LED indication appears and selected voltage value will be indicated.
LED STATUS INDICATOR LED Blue / Green RED LED Dim No Light Status Power up with Positive Output DC Voltage Power up with Negative Output DC Voltage Output over current NO Power or Output short circuit ADAPTER FITTING Installing the Adapter Insert the Adapter in the direction indicated by Arrow A until it snaps into the Main Housing. Push the adapter in the direction indicated by Arrow B until you hear a click. Uninstalling the Adapter Press the Release Lock in the direction indicated by Arrow A.
SAFETY PRECAUTIONS & MAINTENANCE: • DO NOT use this Adapter unit inside a drawer, closed cabinet, or cover with a cloth. The heat generated from operation may damage Adapter or equipment connected. • DO NOT attempt to open the unit. Doing so will void your warranty. • DO NOT short-circuit the output terminal. • DO NOT allow moisture of any kind to come in contact with the Adapter. Never immerse in water for any reason. • DO NOT store in an area which may expose the Adapter to extreme temperatures.
TECHNICAL SPECIFICATIONS: Technology: Switching Mode Operation Power Source: AC Input: 100 – 240 VAC ( 50-60Hz) DC Input: 10 –14 VDC Input Current: AC Input: 300 mA Max. DC Input: 1.4 A Max. Output Voltage: 3.3Vdc 4.3Vdc 5.0Vdc 6.5Vdc 7.0Vdc 8.4Vdc Output Current: 1.6A Max.
Maxell Limited Warranty Maxell Corporation of America warrants this product to the original purchaser against defects in material and workmanship for a period of one year from the date of purchase. Maxell will, at its option, repair or replace the defective product at no cost to you during the warranty period. The warranty will not apply if the unit has been subject to accident, misuse, abuse, disassembly, alteration or opened contrary to the instructions contained in the accompanying manual.
