Installation Guide

7

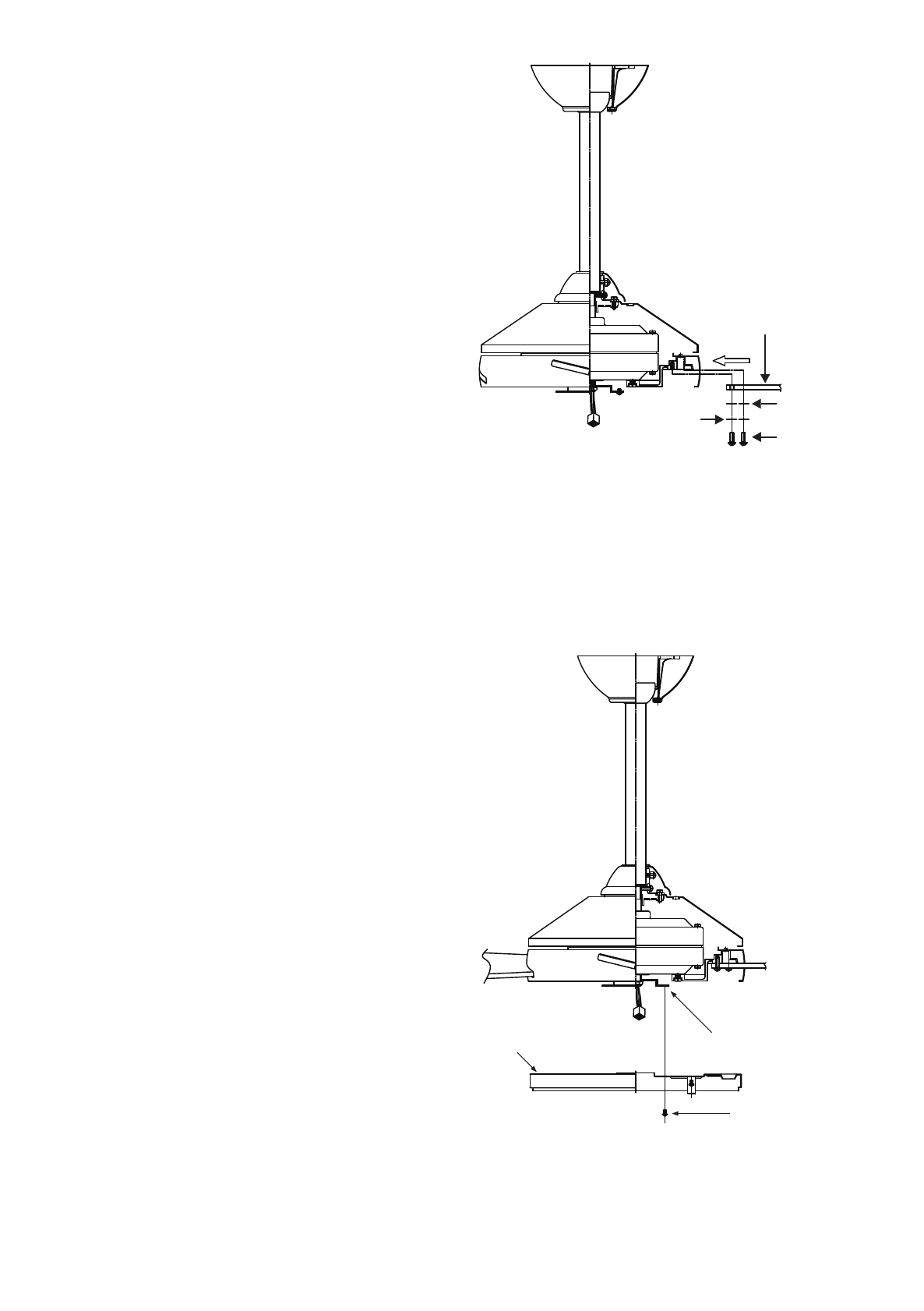

Figure 14
Figure 15
9. ATTACHING THE FAN
BLADES
1. Fasten blade to motor using the flat washers,
lock washers and screws supplied. (Fig. 14)
2. Repeat process with other blades. Tighten each
screw and make sure the blade is straight.
Screw
Flat washers
Blade
Lock washers
10. ATTACHING THE
MOUNTING PLATE
Step 1. Remove the 1 of 3 screws from the
mounting ring and keep it for future use. Loosen
the other 2 screws. (Do not remove)
Step 2. Place the key holes on the mounting plate
over the 2 screws previously loosened from the
mounting ring, turn mounting plate until it locks in
place at the narrow section of the key holes.
Secure by tightening the 2 screws previously
loosened and the one previously removed. (Fig.
15)
Screws
Mounting ring
Mounting
plate
