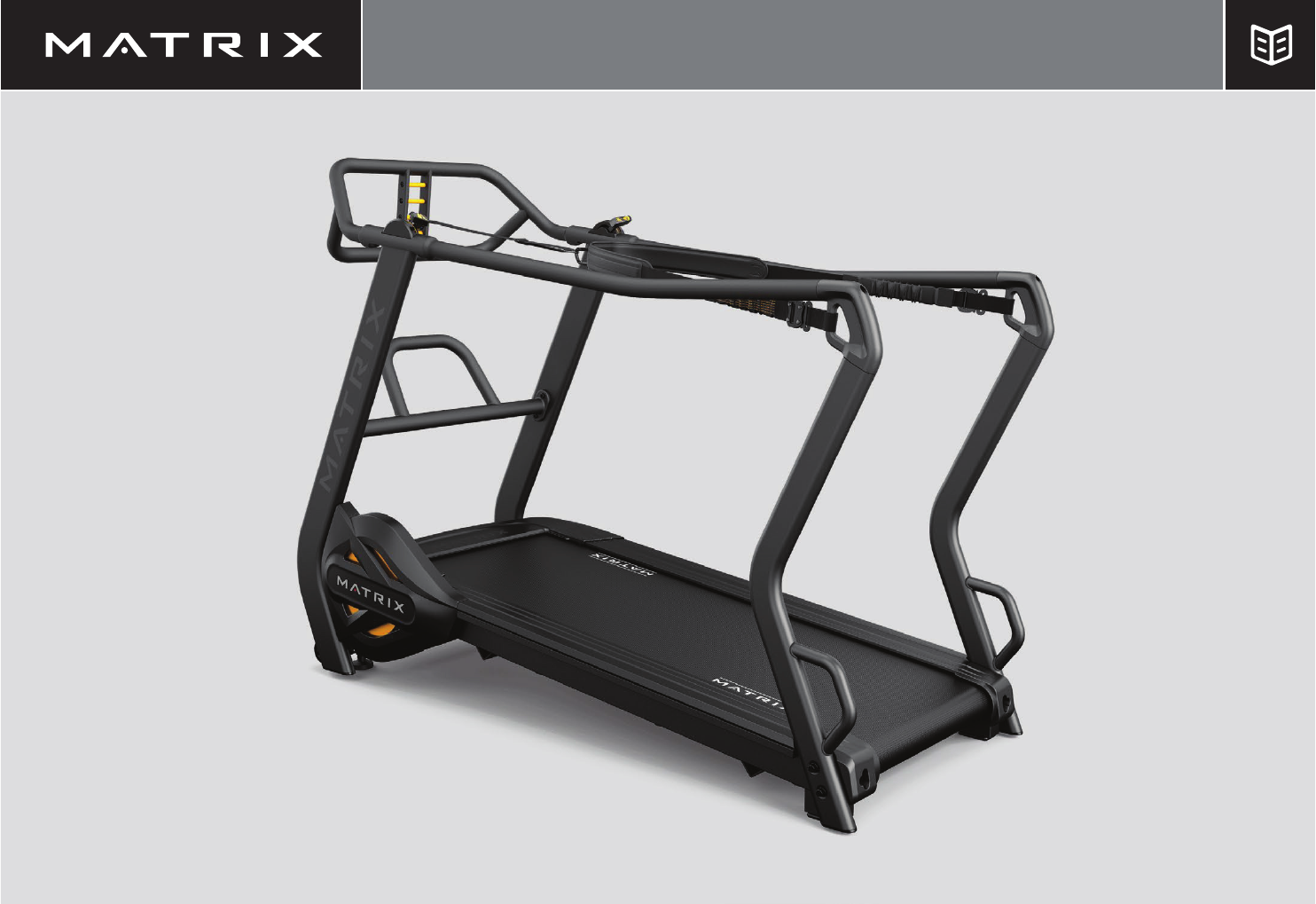

T-DPT
SAVE THESE INSTRUCTIONS When using a treadmill, basic precautions should always be followed, including the following: Read all instructions before using this treadmill. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions. This product is intended for commercial use. To ensure your safety and protect the equipment, read all instructions before operating.
ASSEMBLY ENGLISH WARNING! UNPACKING 8QSDFN WKH HTXLSPHQW ZKHUH \RX ZLOO EH XVLQJ LW 3ODFH WKH FDUWRQ RQ D OHYHO ȵDW VXUIDFH ,W LV UHFRPPHQGHG WKDW \RX SODFH D SURWHFWLYH FRYHULQJ RQ \RXU ȵRRU 1HYHU RSHQ ER[ ZKHQ LW LV RQ LWV VLGH IMPORTANT NOTES There are several areas during the assembly process that special attention must be paid.
Black Hardware Bags (x2) 2 A B Description Bolt Flat Washer Qty 4 4 ENGLISH 1 Note: Note: There are no screws holding on the motor cover. Do not fully tighten hardware until the end of step 5. Step 2 Torque Value: 78.4 Nm / 57.
Red Hardware Bags (x2) 3 C Description Bolt White Hardware Bag Qty 4 4 D Description Bolt Qty 4 ENGLISH Note: Note: Do not fully tighten hardware until the end of step 5. Do not fully tighten hardware until the end of step 5. Step 3 Torque Value: Step 4 Torque Value: 78.4 Nm / 57.8 ft-lb 39.2 Nm / 28.
5 E F G Description Bolt Flat Washer Bolt Qty 4 4 2 Note: A. Carefully pull the CABLE (1) through the RIGHT HANDLEBAR SUPPORT using the twist tie located inside the RIGHT HANDLEBAR SUPPORT and attach to the CONNECTOR CABLE (2) on the MAIN FRAME. Yellow Hardware Bag 6 H Description Screw Qty 2 ENGLISH Green Hardware Bag B. Repeat on other side. C. Completely tighten hardware from steps 25 according to the Torque Values specified in each step. Step 5 Torque Value: 39.2 Nm / 28.
7 8 ENGLISH Note: Check that all harness connections are secure before use 7 12 5 8 ASSEMBLY COMPLETE!
BEFORE YOU BEGIN TREADMILL LOCATION Place the treadmill on a level and stable surface away from direct sunlight. The intense UV light can cause discoloration on the plastics. Locate your treadmill in an area with cool temperatures and low humidity. Please leave a clear zone behind the treadmill that is at least the width of the treadmill and at least 79 (2000 mm) long. This zone must be clear of any obstruction and provide the user a clear exit path from the machine.
LEVELING THE EQUIPMENT ENGLISH It is extremely important that the levelers are correctly adjusted for proper operation. An unbalanced treadmill may cause belt misalignment or other issues. Use of a level is recommended. Once you have placed the treadmill where you intend to use it, raise or lower one or both of the adjustable levelers located on the bottom-front of the frame. SLED MODE PROPER USAGE WALK / SPRINT PROPER USAGE PROPER USAGE The treadmill can be used in two modes; sled or walk/sprint.
1. $Q\ DQG DOO SDUW UHPRYDO RU UHSODFHPHQW PXVW EH SHUIRUPHG E\ D TXDOLȴHG VHUYLFH WHFKQLFLDQ MAINTENANCE SCHEDULE 2. DO NOT use any equipment that is damaged and or has worn or broken parts. Use only replacement parts supplied by your countrys local MATRIX dealer. ACTION FREQUENCY Clean entire machine using water and a mild soap or other Matrix approved solution (cleaning agents should be alcohol and ammonia free). DAILY Check harness for wear and secure connections.
T-DPT © 2016 Johnson Health Tech Part # 1000384836 Rev 1.
