DEDICATED CIRCUIT AND ELECTRICAL INFO
A “Dedicated Circuit” means that each outlet you plug into should not have anything else running on that same circuit. The
easiest way to verify this is to locate the main circuit breaker box, and turn off the breaker(s) one at a time. Once a breaker has
been turned off, the only thing that should not have power to it are the units in question. No lamps, vending machines, fans,
sound systems, or any other item should lose power when you perform this test.
Non-looped (isolated) neutral/grounding means that each circuit must have an individual neutral/ground connection coming
from it, and terminating at an approved earth ground. You cannot “jumper” a single neutral/ground from one circuit to the next.
ELECTRICAL REQUIREMENTS
For your safety and to ensure good treadmill performance, the ground on this circuit must be non-looped (isolated). Please
refer to NEC article 210-21 and 210-23. Your Treadmill is provided with a power cord with a plug listed below and requires the
listed outlet. Any alterations of this power cord could void all warranties of this product.
For units with an integrated TV (like the 1xe and 3xe), the TV power requirements are
included in the unit. An RG6 coaxial cable with ‘F Type’ compression fittings on each
end will need to be connected to the cardio unit and the video source. For units with an
add-on digital TV (1x and 3x) or add-on PCTV (3x only), the TV power requirements
are separate.
110 V UNITS
All Matrix T1x T1xe, T3x and T3xe 110 V treadmills require the use of a 100-125 V,
60 Hz and a 20 A “Dedicated Circuit”, with a non-looped (isolated) neutral/ground for
power. This outlet should be a NEMA 5-20R and have the same configuration as the
plug. No adapter should be used with this product. Note: For 110 V T1xe and T3xe
treadmills, an additional power board needs to be installed under the motor cover
before powering on the unit - see assembly instructions for details.
220 V UNITS
All Matrix T1x T1xe, T3x and T3xe 220 V treadmills require the use of a 216-250 V,
50 Hz and a 20 A “Dedicated Circuit”, with a non-looped (isolated) neutral/ground for
power. This outlet should be a NEMA 6-20R and have the same configuration as the
plug. No adapter should be used with this product.
North American power cord plugs shown.
Depending on your country, the plug type may vary.

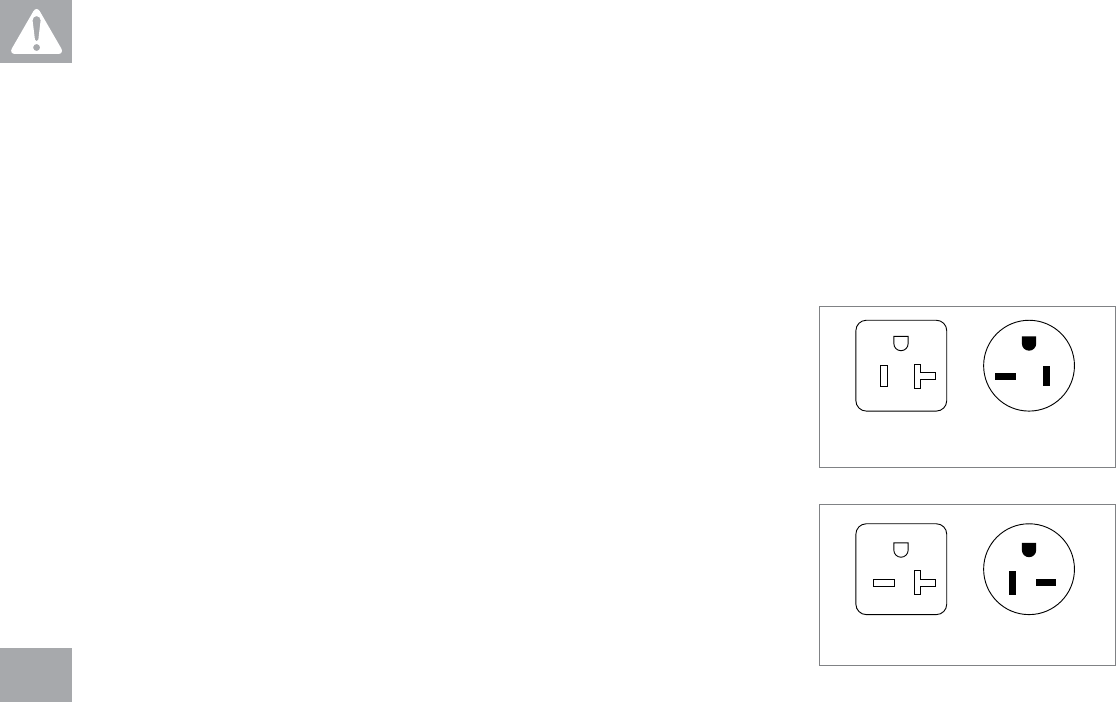

110 NEMA 5-20R
RECEPTICLE
110 NEMA 5-20P
PLUG
220 NEMA 6-20R
RECEPTICLE
220 NEMA 6-20P
PLUG
110 NEMA 5-20R
RECEPTICLE
110 NEMA 5-20P
PLUG
220 NEMA 6-20R
RECEPTICLE
220 NEMA 6-20P
PLUG
