Owner`s manual

28

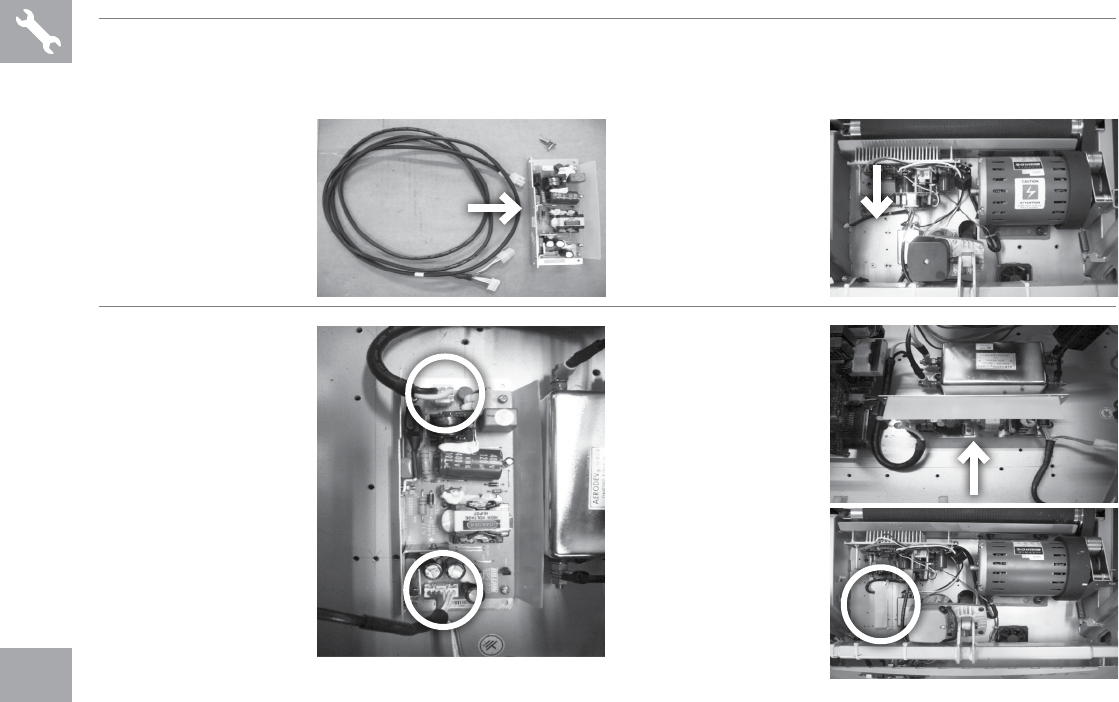

ASSEMBLY STEP 5
For T1xe and T3xe 110 V units, an additional power board needs to be installed.
For T1xe and T3xe 220 V units, the additional power board is not needed.
This power board will
ship with the console
and look something
like this:
This is where the
power board needs
to be installed for
110 V T1xe and T3xe
treadmills:
A Connect the two-
wire (black and
white) plug into the
‘W101’ terminal
(top).
B Connect the six-
wire (3 red and 3
white) plug into the
‘W102’ terminal
(bottom).
C Tilt the power
board on its side
and screw onto
frame.
D Power board
assembly complete
for 110 V T1xe and
T3xe treadmills:
