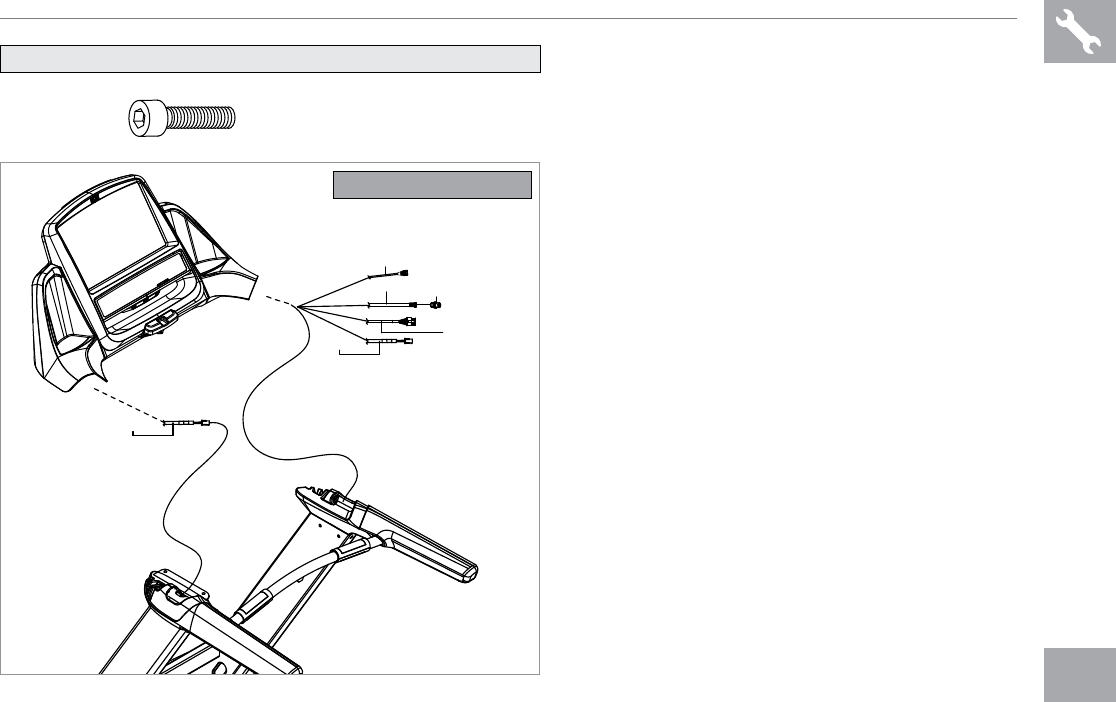

ASSEMBLY STEP 4
A Open BLACK HARDWARE BAG.
B Assemble the console to the handlebars
using 14-SOCKET HEAD CAP SCREW. Be
sure to route the console cables down the
console mast and connect the contact HR
wires. Make all appropriate wire connections
within the motor compartment.
8
P07
R
N59
N57
N58
N71
2
2
L
N71
14
SOCKET HEAD CAP SCREW
Qty: 4
BLACK HARDWARE BAG CONTENTS :
T1XE/T3XE SHOWN
