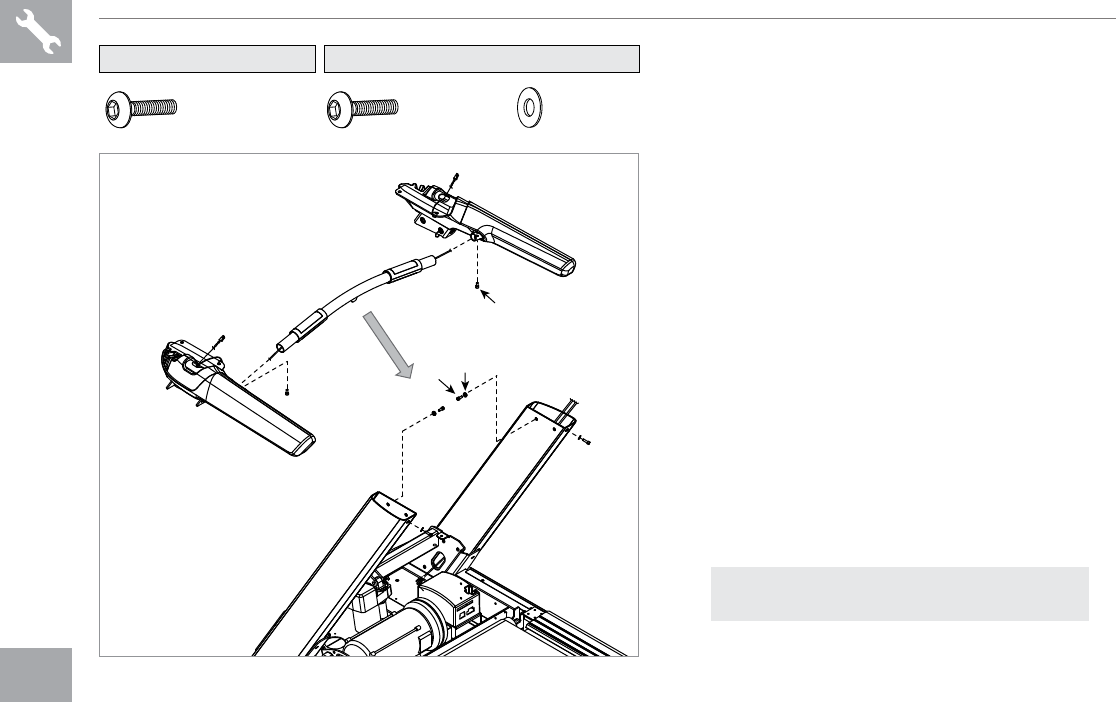

ASSEMBLY STEP 3
A Open YELLOW AND WHITE HARDWARE
BAGS.
B Assemble the contact HR crossbar to the
left and right handlebars using 18-BUTTON
HEAD SCREW. Fasten the contact HR
crossbar/handlebar assembly to the console
masts using 15-BUTTON HEAD SCREW
AND 12-FLAT WASHER.
NOTE: Make sure the arrows on the mast
rings are pointing upward towards the
console when sliding into place.
C Pull the HR wires through handlebars using
wire pull. Pull mast wire through handlebar.
ASSEMBLY TIP: look at the labels on
the HR wire coming from the contact HR
crossbar to ensure contact with HR crossbar
and left-right handlebars are assembled in
the proper orientation.
NOTE: Be careful not to pinch any wires
while assembling the right console mast.
18
BUTTON HEAD SCREW
Qty: 2
15
BUTTON HEAD SCREW
Qty: 6
12
FLAT WASHER
Qty: 6
YELLOW HARDWARE BAG :
12
L
2
2
R
12
15
18
WHITE HARDWARE BAG CONTENTS :
