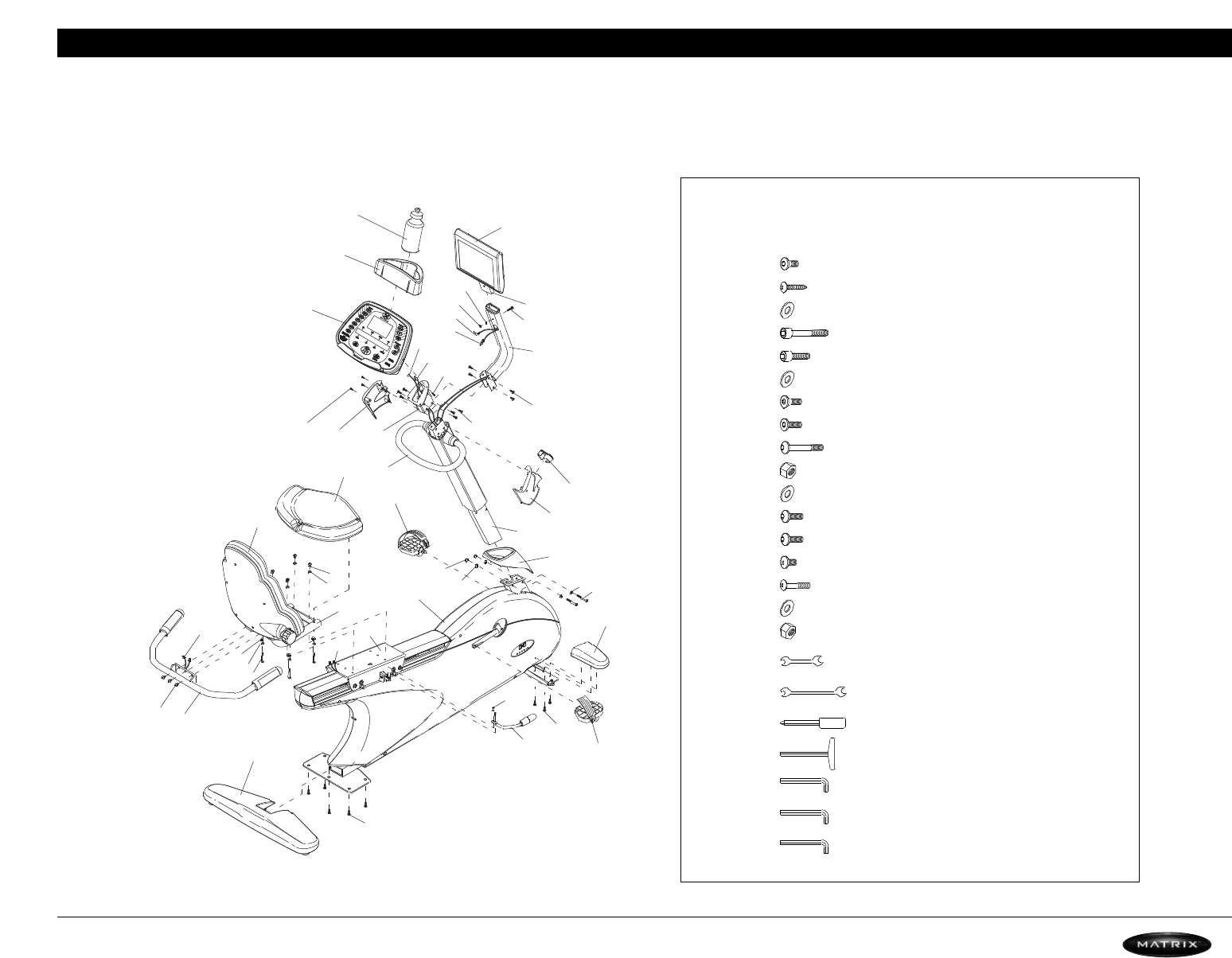

6.1) MX-R5 Exploded View
AN1
WATER BOTTLE
N10
TV
TV RACK
C
27
AC4
C20
C
12
D11
AC2
T08
T09
D43
D55
C24
A02
P22
A01
AB1
C31
D13
P07
D46
D55
D44
D56
AD5
F01
F06
AC3
C17
C
26
C17
C23
C11
AC1
Q03
C24
C30
F02
T08
T09
F05
D04
D37
C
28
P03
P
04
P23
N
25
P
01
FASTENERS AND ASSEMBLY TOOLS
C17 6BUTTON HEAD BOLT (M8 x 15L)
C20 3BUTTON HEAD BOLT (M4 x 10L)
C24 2WASHER (8.2x18.0x1.4t(BED)
C30 2BUTTON HEAD BOLT (M8 x 50L)
D37 2BUTTON HEAD BOLT (M8 x 25L)
D39 2WASHER (SW5 5.1x9.3x1.3t)
D43 4BUTTON HEAD BOLT (M8 x 15L)
D56 3BUTTON HEAD BOLT (M8 x 15L)
D44 4BUTTON HEAD BOLT (M8 x 50L)
WASHER (8.2x18.0x1.5t)D46 4
BUTTON HEAD BOLT (M5 x 12L)
N25 4
C26 BUTTON HEAD BOLT (M4 x 38L) 1
C27 WASHER 1
C28 1SCREW (M4)
C31 2SCREW (M8)
1PHILLIPS DRIVER (4.5 x 50mm)
1OPEN WRENCH (#13)
1OPEN WRENCH (#17)
14mm ALLEN WRENCH
15mm ALLEN WRENCH
16mm ALLEN WRENCH
R
EFERENCE SKETCH DESCRIPTION QUANTITY
F06 5BUTTON HEAD BOLT (M10 x 20L)
BUTTON HEAD BOLT (M8 x 20L)
F05 6
15mm ALLEN WRENCH
