Technical data

PLC Library SINAUT MICRO SC Flex Px
SINAUT MICRO SC
58 C79000-G8900-C210

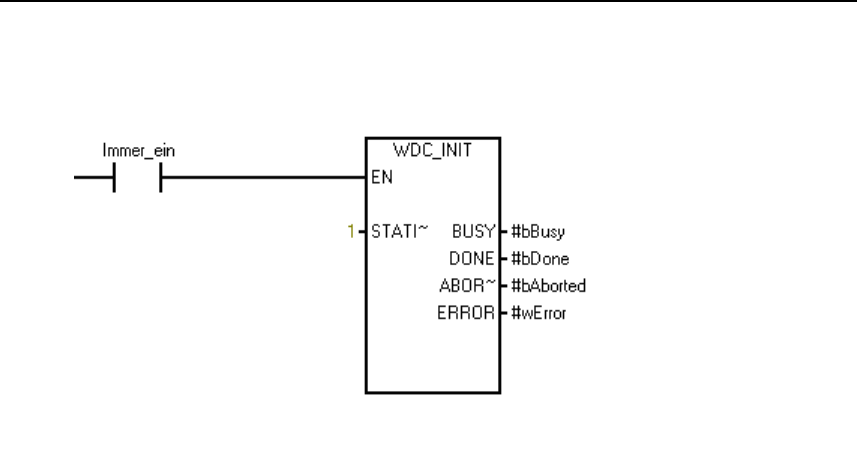

Call of WDC_INIT_smart:
STATION_NUMBER
(WORD)
Logical address of local station.
BUSY
(BOOL)
0 Inactive
1 The initialization sequence is in process at the moment.
DONE
(BOOL)
1 The initialization has been successfully accomplished.
ABORTED
(BOOL)
1 The initialization has been aborted due to an error.
ERROR
(WORD)
Error number, describing the result of the processing.
A list of all error numbers and their meaning is to be found in chapter 0
