Station status

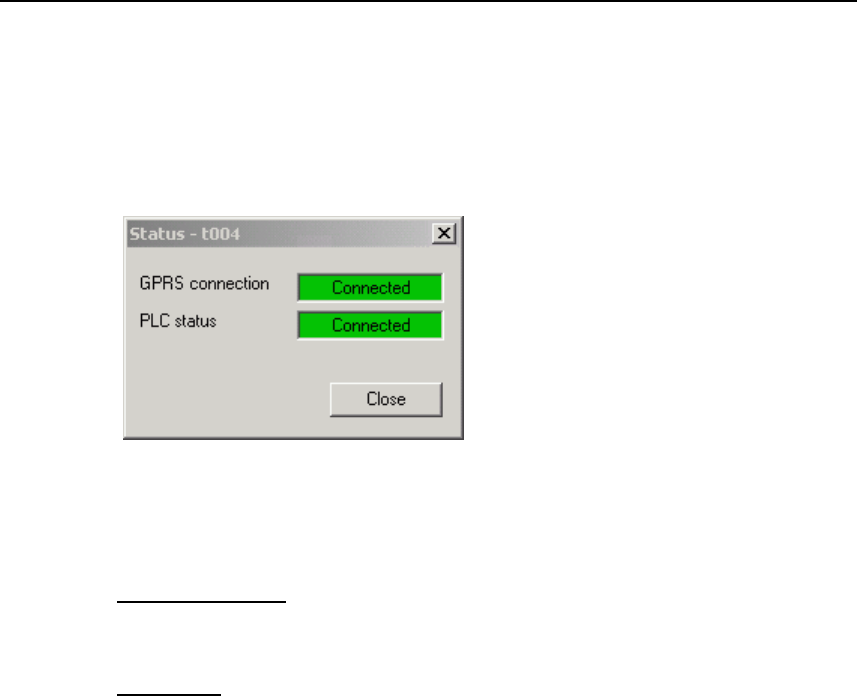

Figure 6-3 Station status
Shows the current connection status of the selected station. The status is checked
by an active call to the PLC when opening this dialog.
GPRS connection
Shows if the GPRS modem is connected to the server.
PLC status
Shows if there's a communication between the server and the PLC.
There's only communication possible between the OPC server and the stations or
between the stations with each other, if both fields show connected.
If the GPRS modem is connected but the PLC isn't, then a possible reason could
be that the PLC isn't in RUN mode or the serial connection between the PLC (port
0) and the modem is broken.
