SINAUT MICRO SC
C79000-G8900-C210
27
SINAUT MICRO SC configuration
6
6.1 Configuration tool
SINAUT MICRO SC provides process remote control via GPRS (General Packet
Radio Service). The system provides communication for the connected stations
with each other and access to all stations over an OPC server. This "SINAUT
MICRO SC" configuration tool is used to configure and monitor all stations
connected to the system. A station consists of a Siemens S7-200 PLC and a
GPRS modem SINAUT MD720-3.
Main window

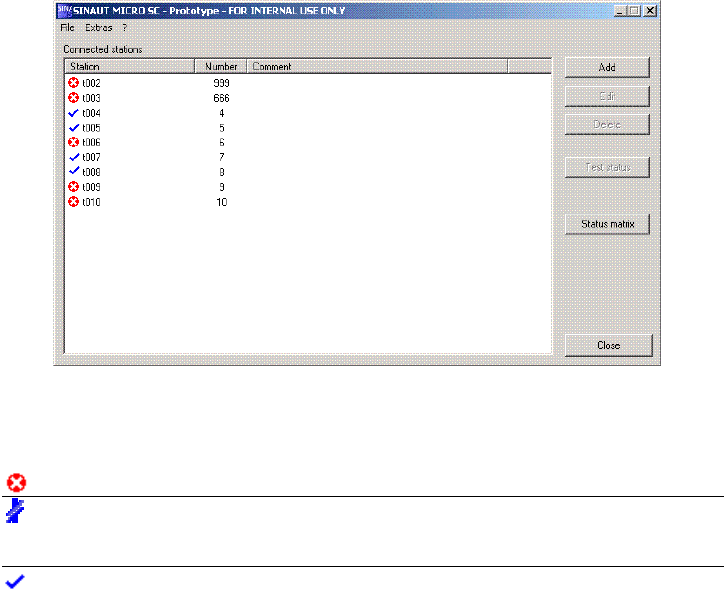

Figure 6-1 Main window
The main dialog shows a list of all configured stations. For each station the current
state is indicated:
The station is disconnected
The GPRS modem is connected to the server but the communication with
the PLC isn't possible (e.g. because the PLC isn't in RUN mode or the
wire between the PLC and the modem is broken)
The station is connected
