OPC Routing Software SINAUT MICRO SC
SINAUT MICRO SC
C79000-G8900-C210
25
Example:
Access path: -
Item ID: MSC:[S1]DB1,INT100
5.4 Address Space Browsing
The OPC server supports hierarchically Address Space Browsing.
When browsing the data on the PLC there’s an asterisk „*“ given in the Item ID
instead of the address. That one has to be replaced by the requested byte-offset.
5.5 Example: Variable entries at WinCC flexible

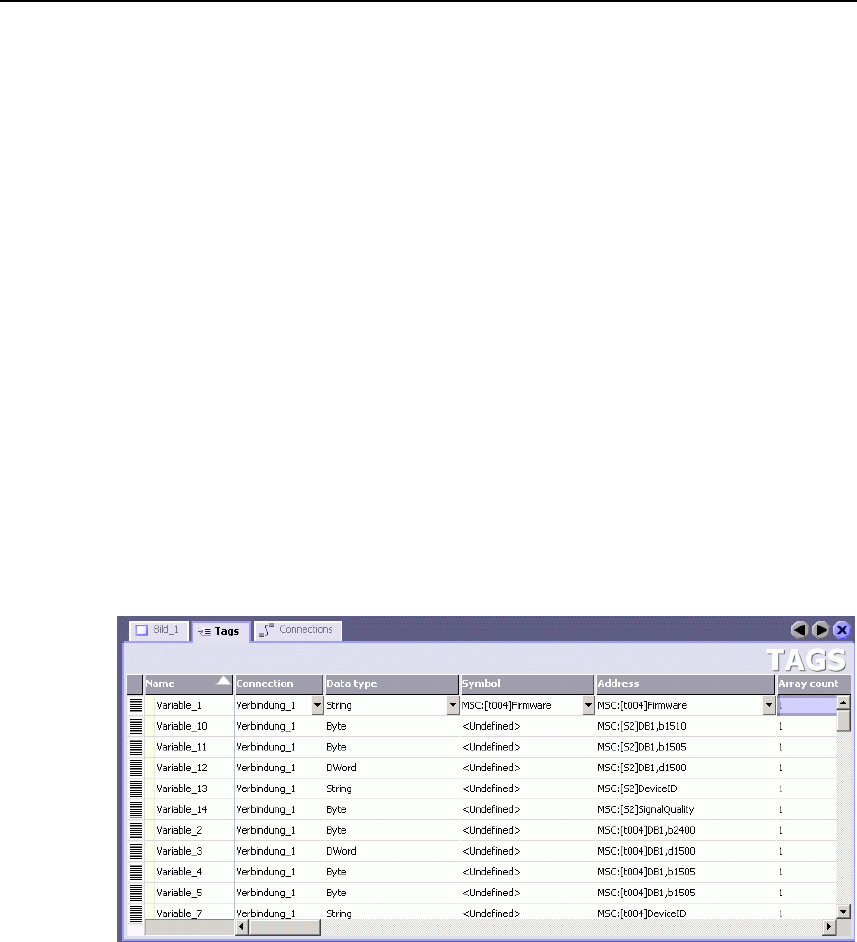

Figure 5-2: Example variable entries at WinCC flexible
