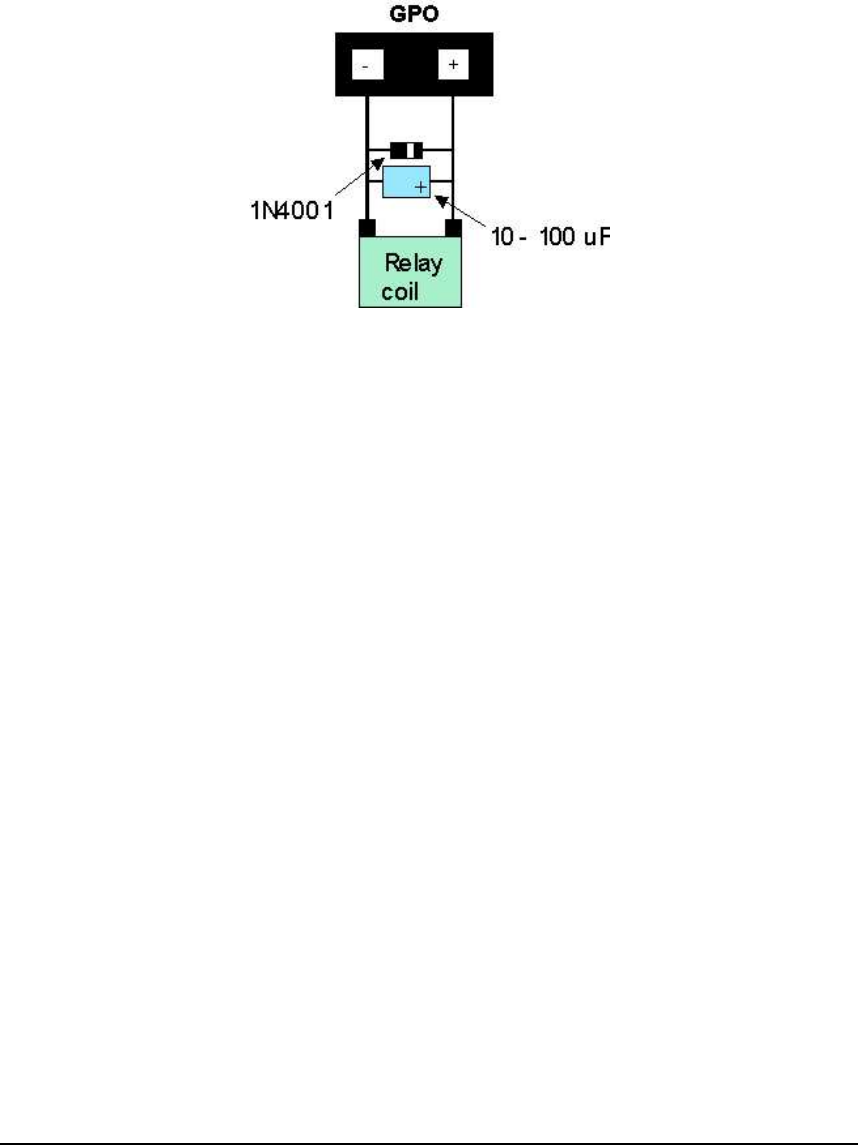

Figure 17: Clamping a Relay
3 Displaying Text
This chapter describes the various text display commands in detail. Before issuing commands to the
VK162-12 please read sections 7.2 and 7.3.
3.1 General
Text is displayed on the LK16-12 using the built in 5x7 dot matrix font, in addition to up to 8 user defined
characters.
3.2 The built in Character Font
The display includes a built in 5x7 dot matrix font with the full range of ASCII characters plus a variety
of extended characters.
Matrix Orbital VK162-12 13
