3.2.6. Creating Programs
You create a program for calling the function blocks whose code was outputted by the Simulink
PLC Coder and a program for outputting command values to the Servo Drive.
1
Delete TestBench and MainTB because they are used for the test to check the
calculation accuracy.

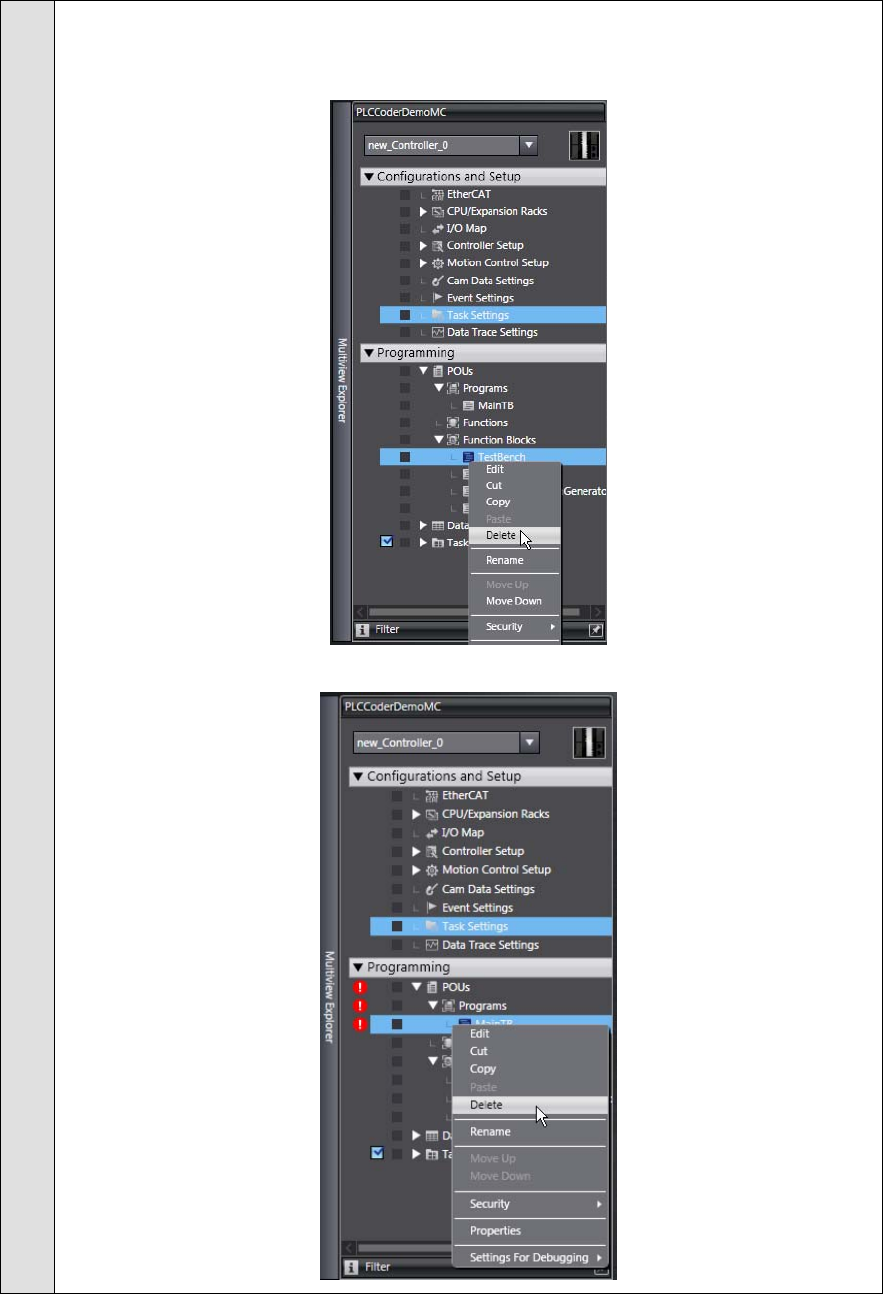

Right-click TestBench in the Multiview Explorer and select Delete from the menu.
Right-click MainTB in the Multiview Explorer and select Delete from the menu.
