3.2.3. Checking the Calculation Accuracy
You confirm that the code has the same calculation accuracy as the Simulink (within the
acceptable error range) by a simulation.
1

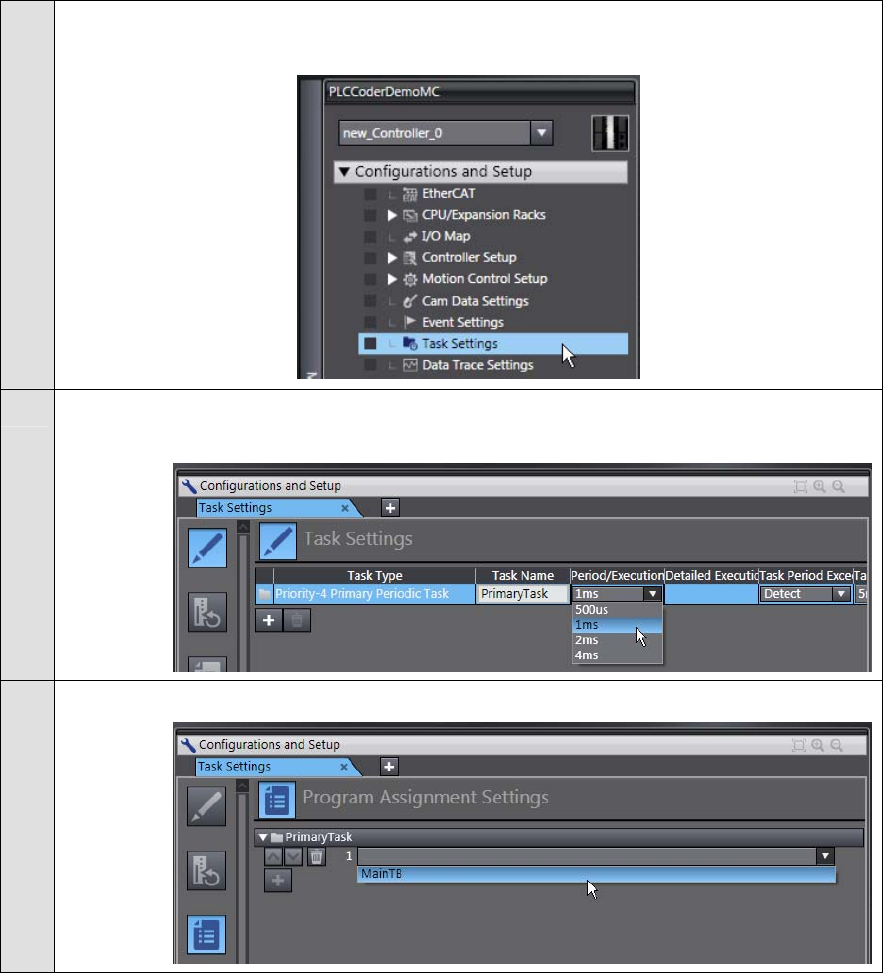

Double-click the Task Settings in the Multiview Explorer to display the Task Settings
Tab Page.
2
Set the task period to 1 ms in the Task Settings View on the Sysmac Studio so that the
period matches the sampling time of the Controller on the Simulink.
3
Select the MainTB program in the Program Assignment Settings View.
