3.2. Simulink PLC Coder & Sysmac Studio Operation Procedure
3.2.1. Outputting the Code using the Simulink PLC Coder
You make a setting for outputting the code for the Sysmac Studio and output the code with test
code from the Simulink.
1

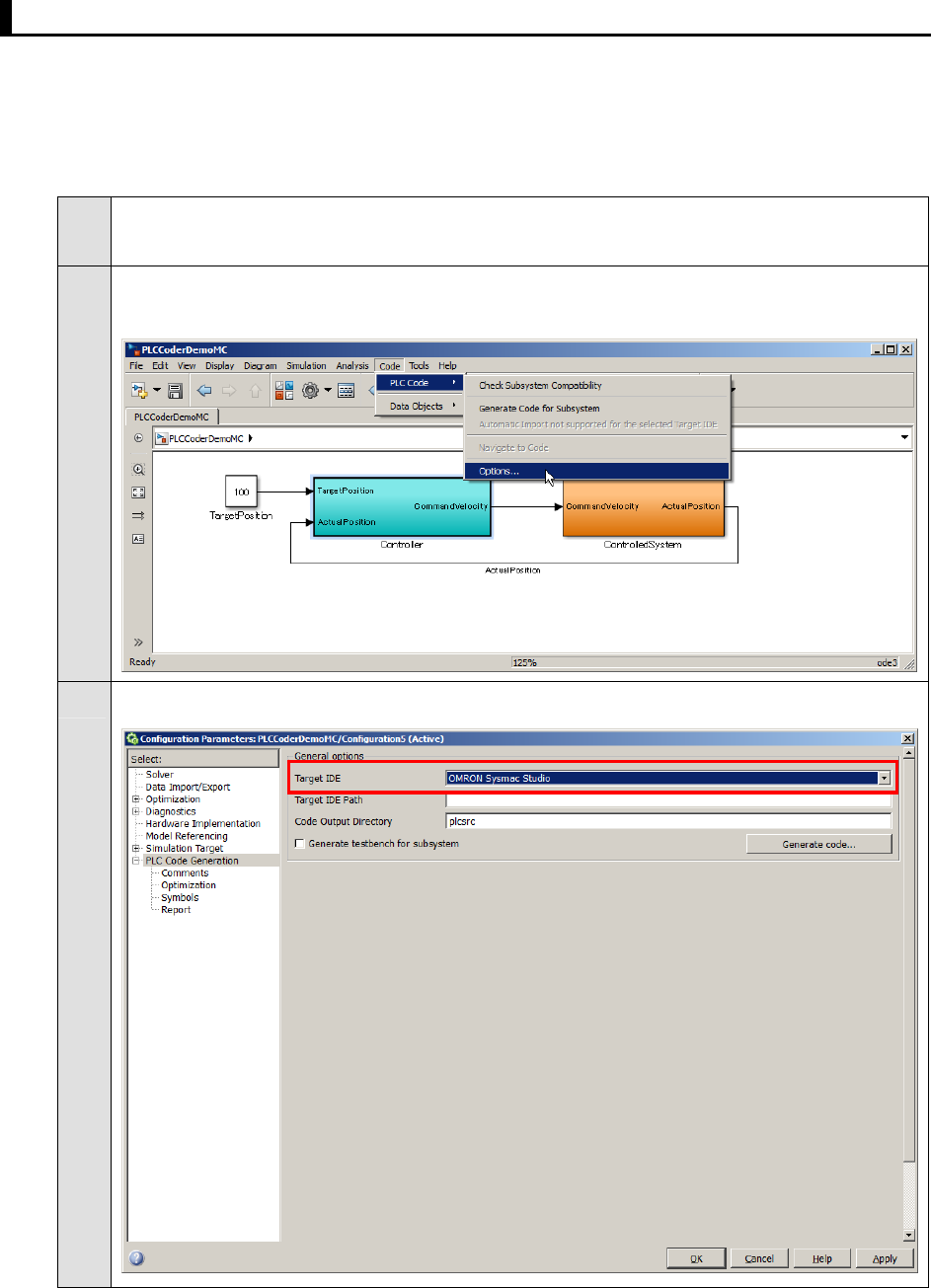

Open the Sample File No. 1 PLCCoderDemoMC.mdl that is provided separately on the
Simulink.
2
Click the Controller block to output the code and select PLC Code - Options from the
Code Menu.
3
Select PLC Code Generation, and then select OMRON Sysmac Studio for Target IDE.
