4 Placing ActiveX Controls in a Different Window
4-11

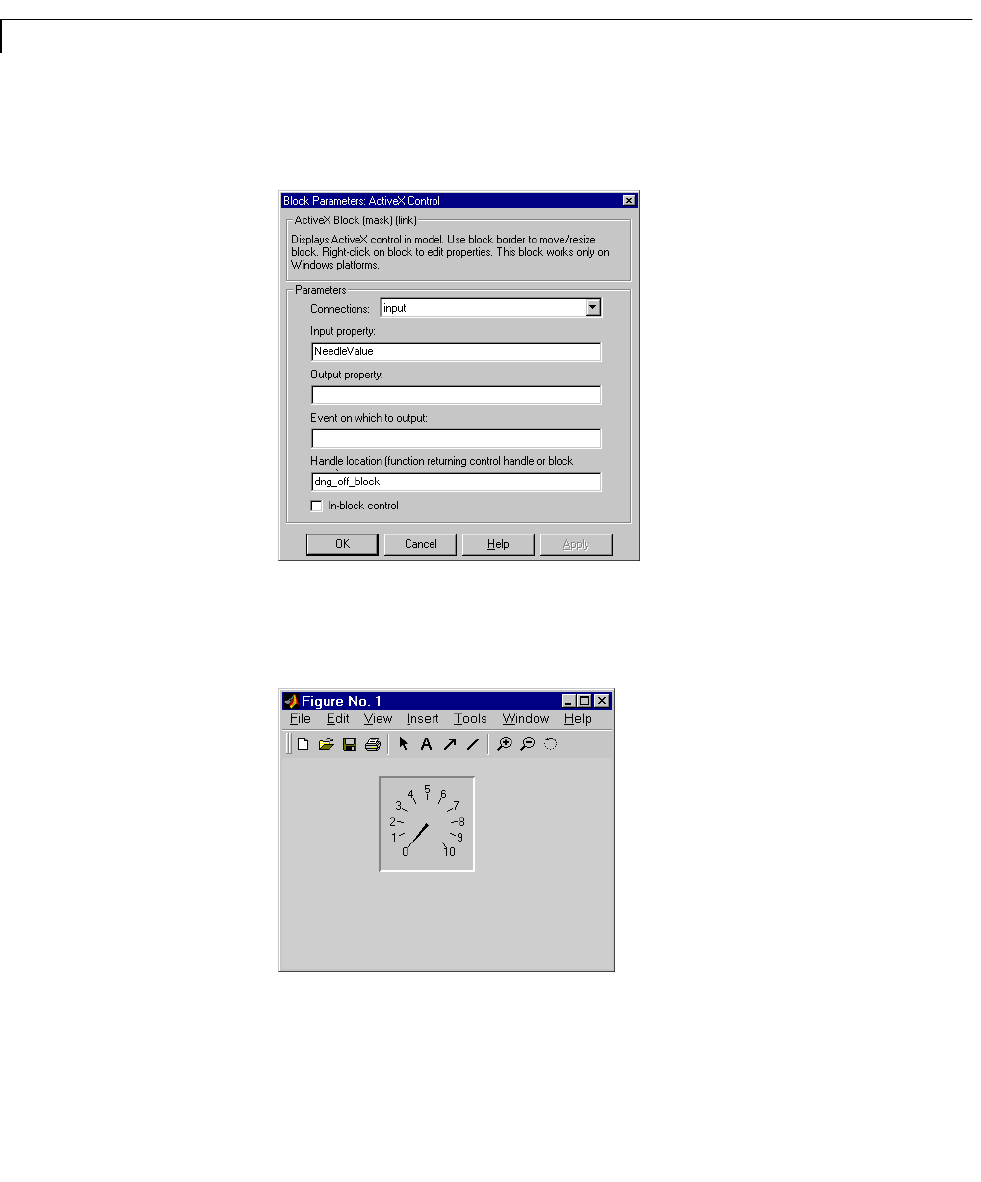

connected to the ActiveX Control block (the code appears below). With the
fields filled in, the
Block Parameters dialog box looks like this.
7 Click on OK. MATLAB executes the dng_off_block M-file, which returns
the handle of the ActiveX Control block in the figure window. The figure
window looks like this (resized).
8 Run the simulation. Notice that the clock time is passed to the Generic
Angular Gauge.
