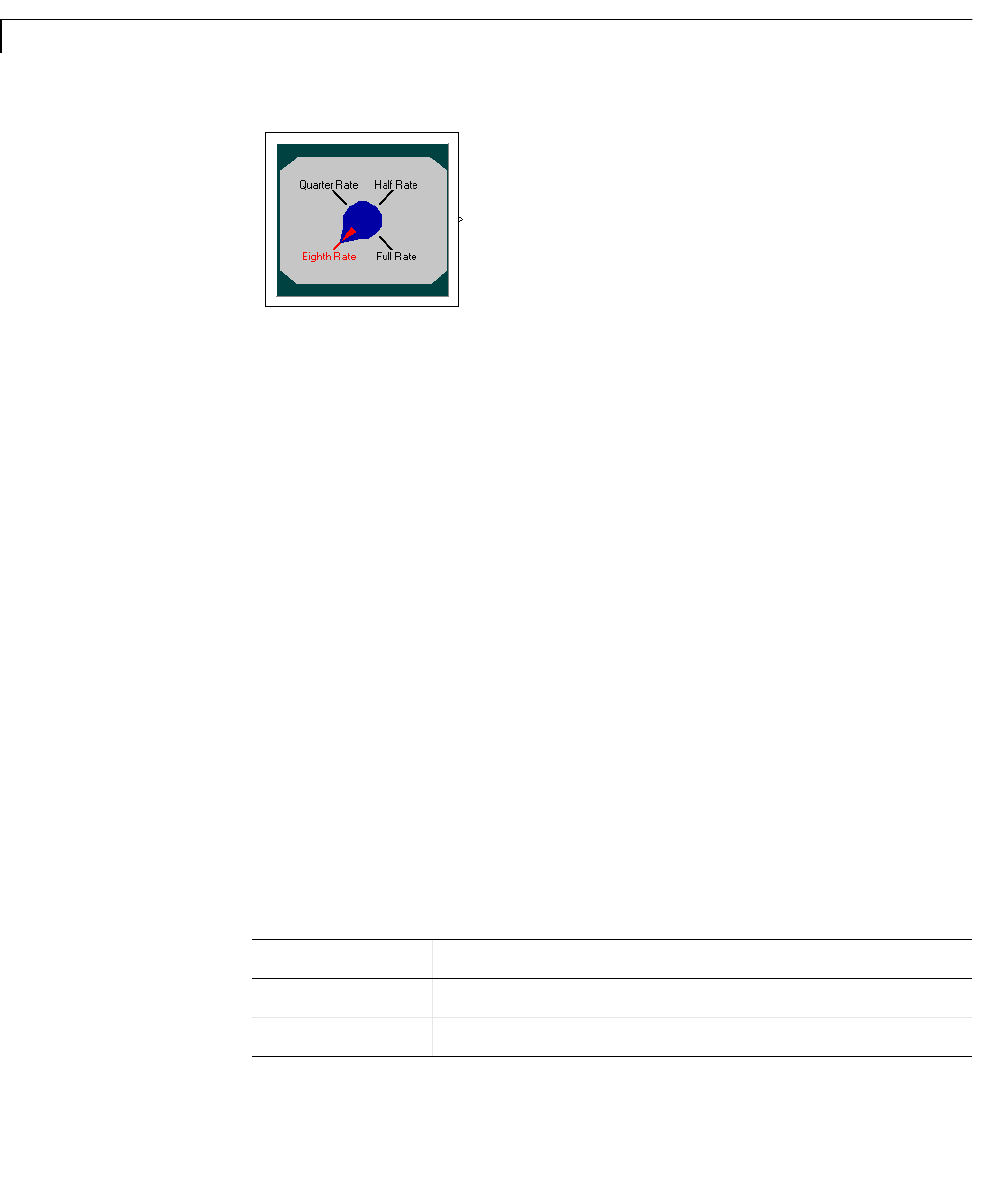

1 Copy the Frequency Selector block from the library into a new model.
2 From the model window, open the block’s ActiveX Control Properties
dialog box. All other steps in this procedure refer to this dialog box.
3 Set up the block to configure selections and their captions automatically, by
checking all of the check boxes on the
Auto panel and setting
AutoOffsetStyle to Vertical. The automatic configurations are a good
starting point, from which you can make manual adjustments later.
4 Define the dial’s range of motion by setting AutoStartAngle to 225 and
AutoStopAngle to 135. These numbers represent degrees, starting from the
top of the block and moving clockwise.
5 Remove all but one of the existing selections by setting the Selections
property on the
Selections panel to 1.
6 Adjust the remaining selection by setting SelectionCaption to Eighth Rate
and setting
Color to black.
7 Add three additional selections by setting the Selections property to 4.
8 Configure the additional selections one at a time. For each selection, first set
SelectionID, and then change SelectionCaption according to the table
below.
SelectionID SelectionCaption
0
Eighth Rate
1
Quarter Rate
