Displaying Labels Next to Tick Marks

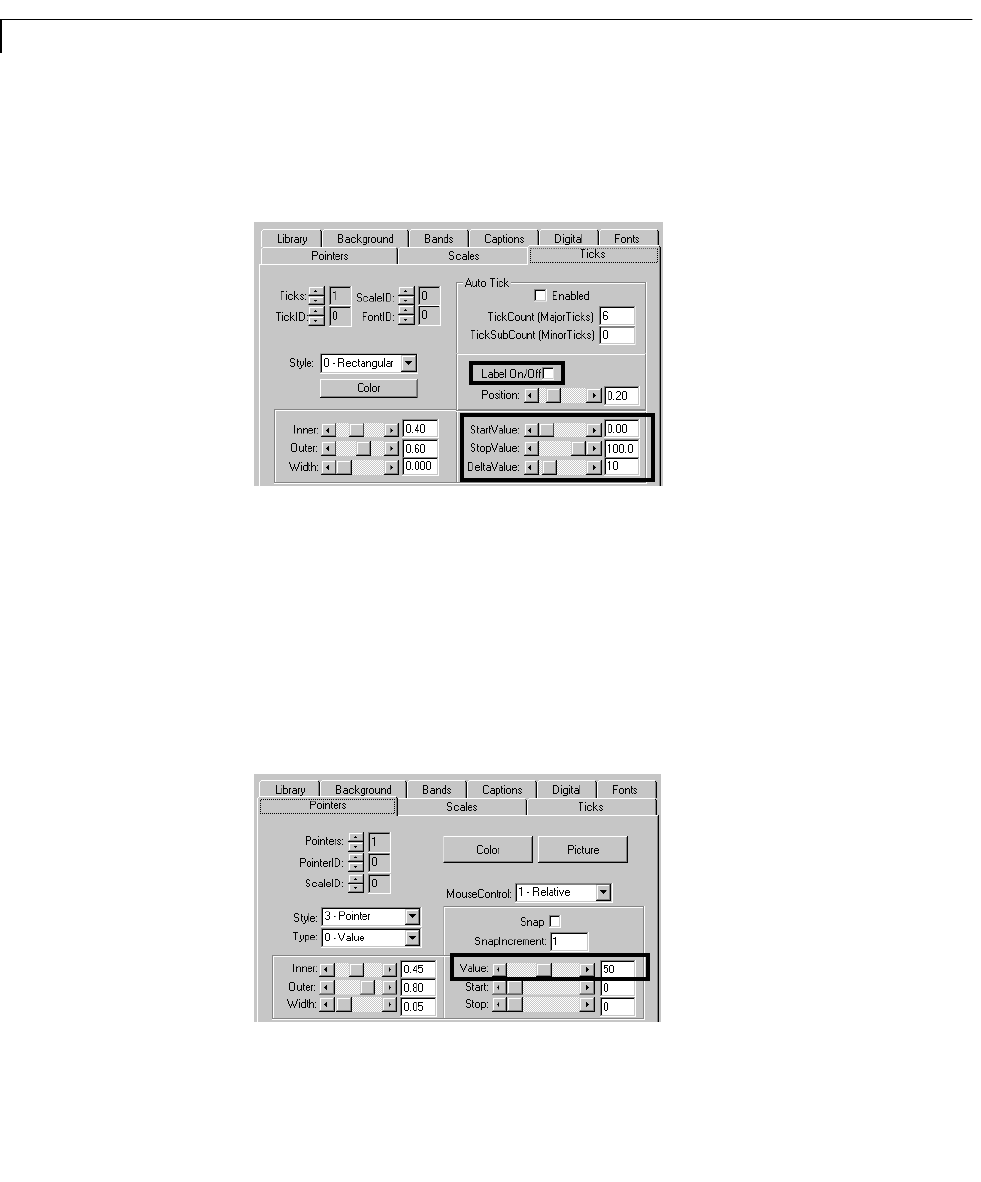

Click on the Ticks tab to display the tick mark properties page. This figure
shows the default tick mark properties.
To show tick mark labels, check the
Label On/Off check box.
To set the starting and ending tick marks so they mark the minimum and
maximum scale settings, set
StartValue to -20 and StopValue to 20. Change
the
DeltaValue property, which sets the spacing between tick marks. A value
of
5 is reasonable for default block size.
Setting the Current Pointer Value
Click on the Pointers tab to display the pointer properties page. This figure
shows the default pointer properties.
.
