If you modify any values in this dialog box, then the block is visually updated
immediately. However, the changes are not permanent until you choose
OK or
Apply; if you choose Cancel, then the changes will be undone.
Example Modifying Properties
Returning to the model that you built in the section “Building a Simple Model”
on page 1-12, you can modify the range of possible input values by modifying
the properties of the Generic Knob block. For example, the instructions below
change the maximum knob value from
10 to 25 so that the maximum value on
the knob corresponds to the maximum value on the Lower Right gauge block.

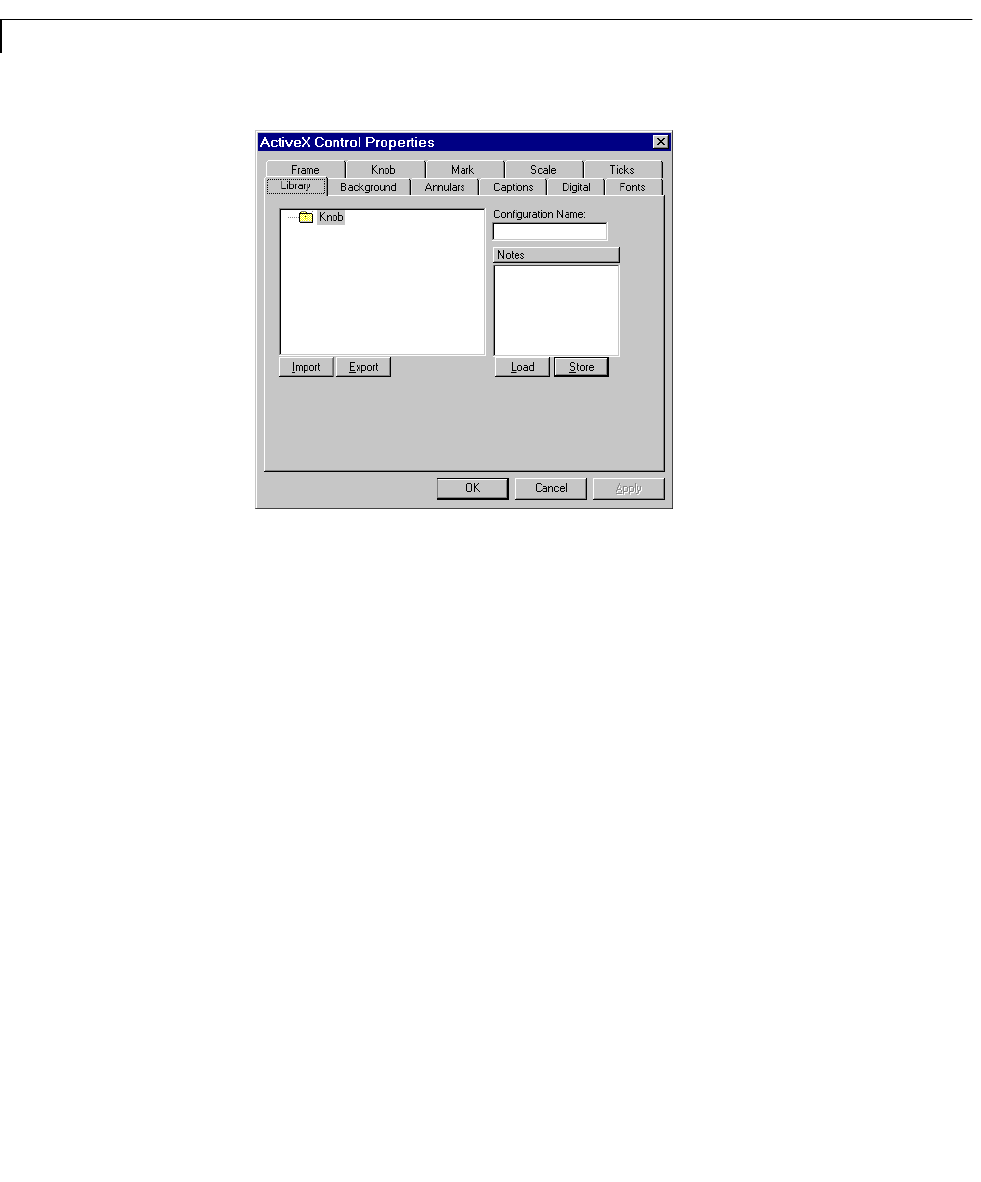

1 Open the ActiveX Control Properties dialog box by double-clicking on the
active area of the Generic Knob block.
2 Display the panel that controls the scaling of values by clicking on the Scale
tab.
3 Set the Max parameter to 25.
4 Display the panel that controls tick marks by clicking on the Ticks tab.
5 Set the StopValue parameter to 25.
