Modifying Properties of Blocks
1-17
Modifying Properties of Blocks
This section describes how to view and modify properties of a preconfigured
Dials & Gauges Blockset block using a dialog box. This section includes:
•“Accessing the Properties”
•“Example Modifying Properties” on page 1-18
•“Learning More About Properties” on page 1-19
Accessing the Properties
You can view ActiveX control properties by using one of these procedures:
•Double-click on the active area of the block that contains the control.
•Right-click on the active area of the block and select the
Control Display
Properties
option.

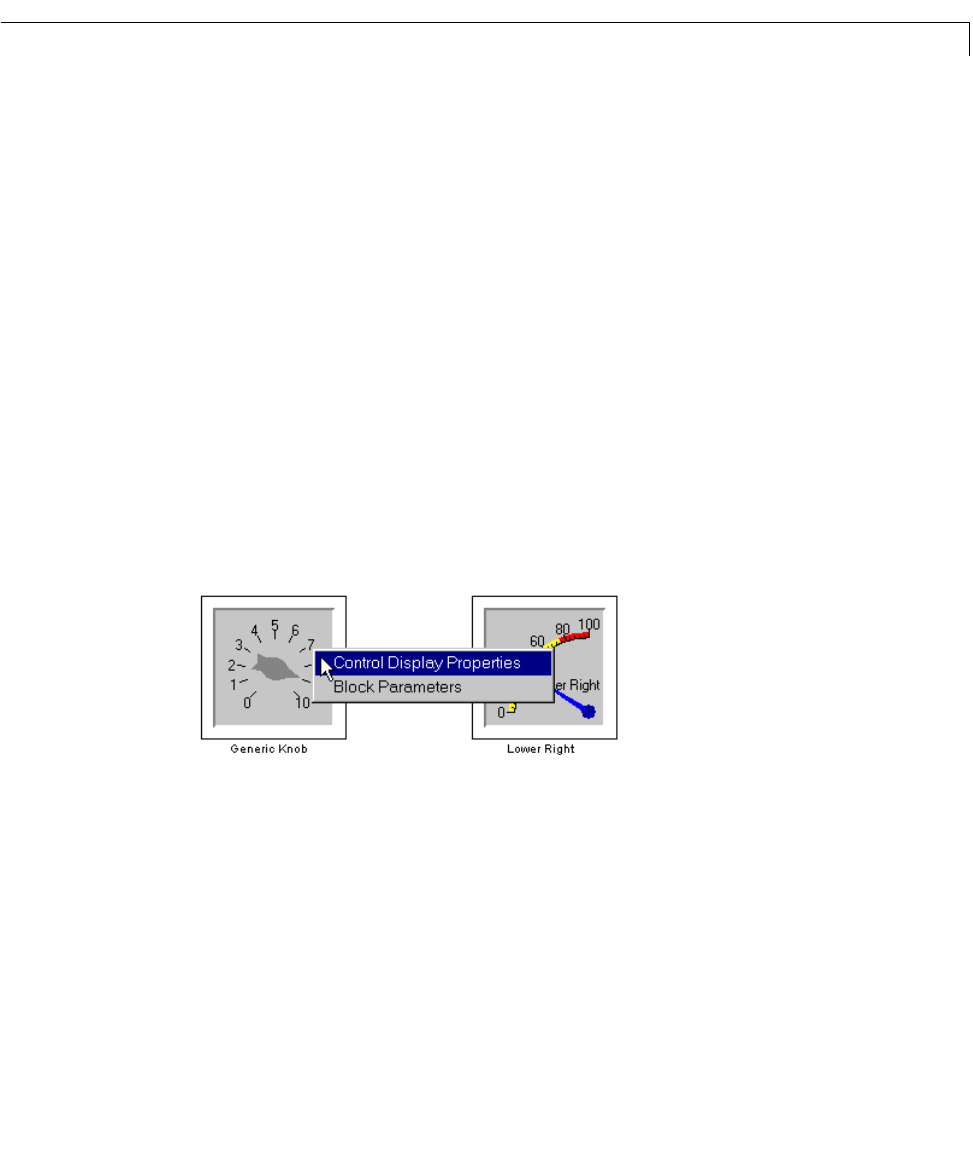

This figure shows the context menu that appears when you right-click on the
Generic Knob block.
After selecting the
Control Display Properties option, the ActiveX Control
Properties
dialog box appears. This dialog box allows you to modify ActiveX
control properties. The next figure shows the dialog box for the Generic Knob
block.
