Accessing the Preconfigured Blocks
1-7

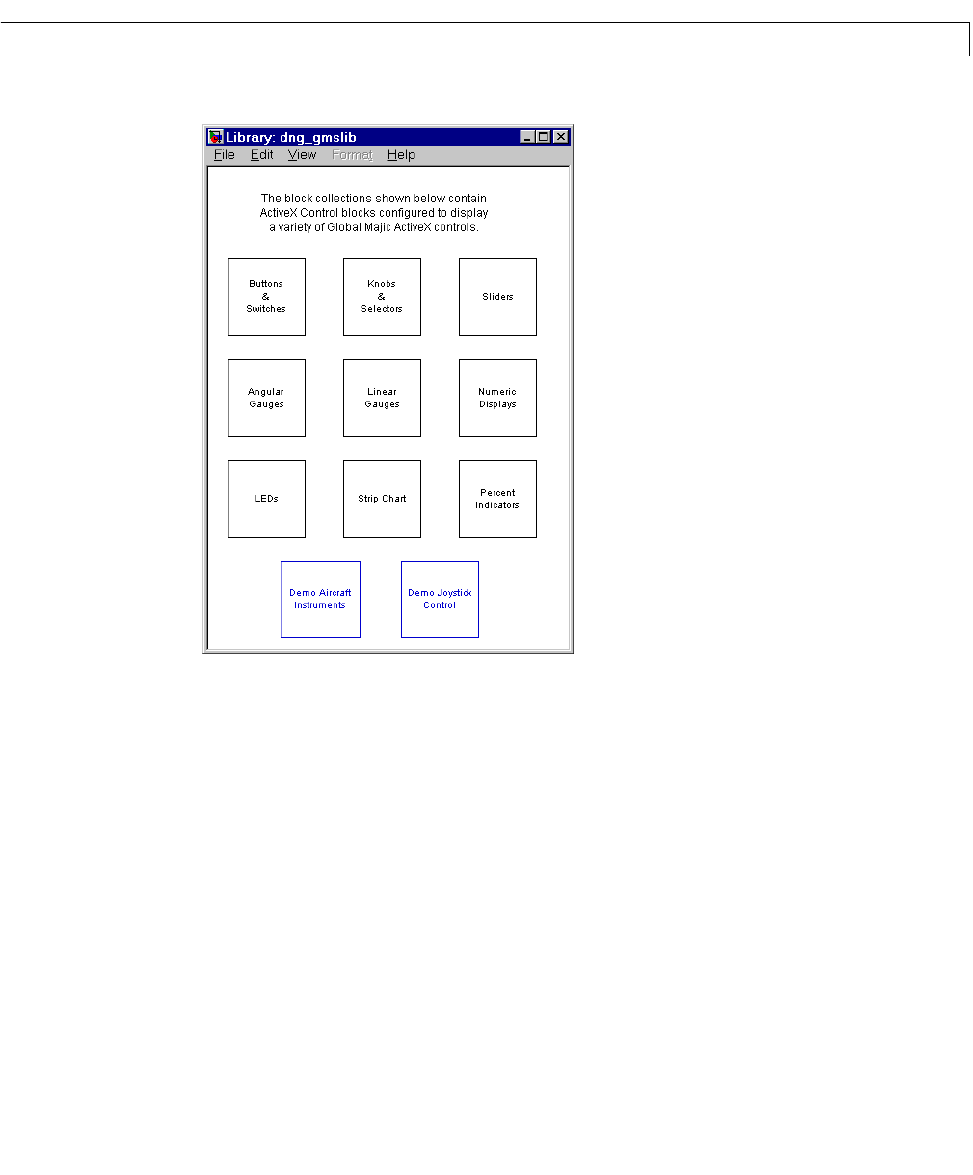

Each icon represents a different library of blocks. Double-click on an icon to
access the blocks in the library. If they all say “ActiveX” and do not look like
graphical instruments, then follow the instructions in “Configuring the Dials
& Gauges Blockset” on page 1-9. Each library also includes a question-mark
block that provides access to online help for the ActiveX controls in that library.
Using the Simulink Library Browser
As an alternative to the dnglib command, you can use the Simulink Library
Browser to access the preconfigured blocks:
1 Open the Dials & Gauges Blockset by clicking on the plus sign to the left of
the blockset name. This displays the listing for the Global Majic ActiveX
Library.
