Chapter 4: Getting Started

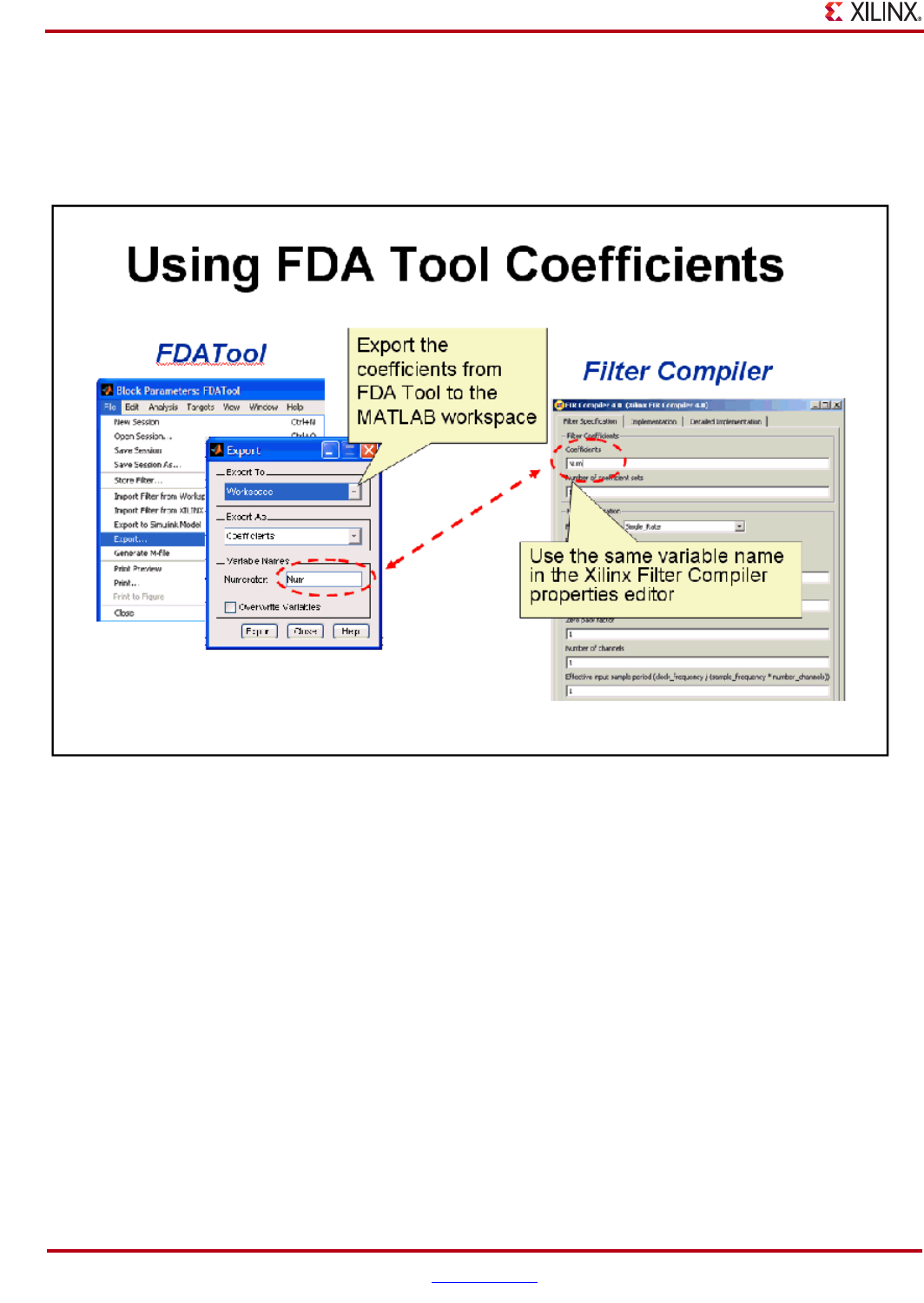

Using FDA Tool Coefficients
Once a suitable filter response has been designed, you simply export the coefficients to the workspace using the
File > Export command. The workspace variable can then be referenced in the FIR Compiler properties editor
