82 www.xilinx.com System Generator for DSP Getting Started Guide
UG639 (v 12.2) July 23, 2010
Chapter 4: Getting Started

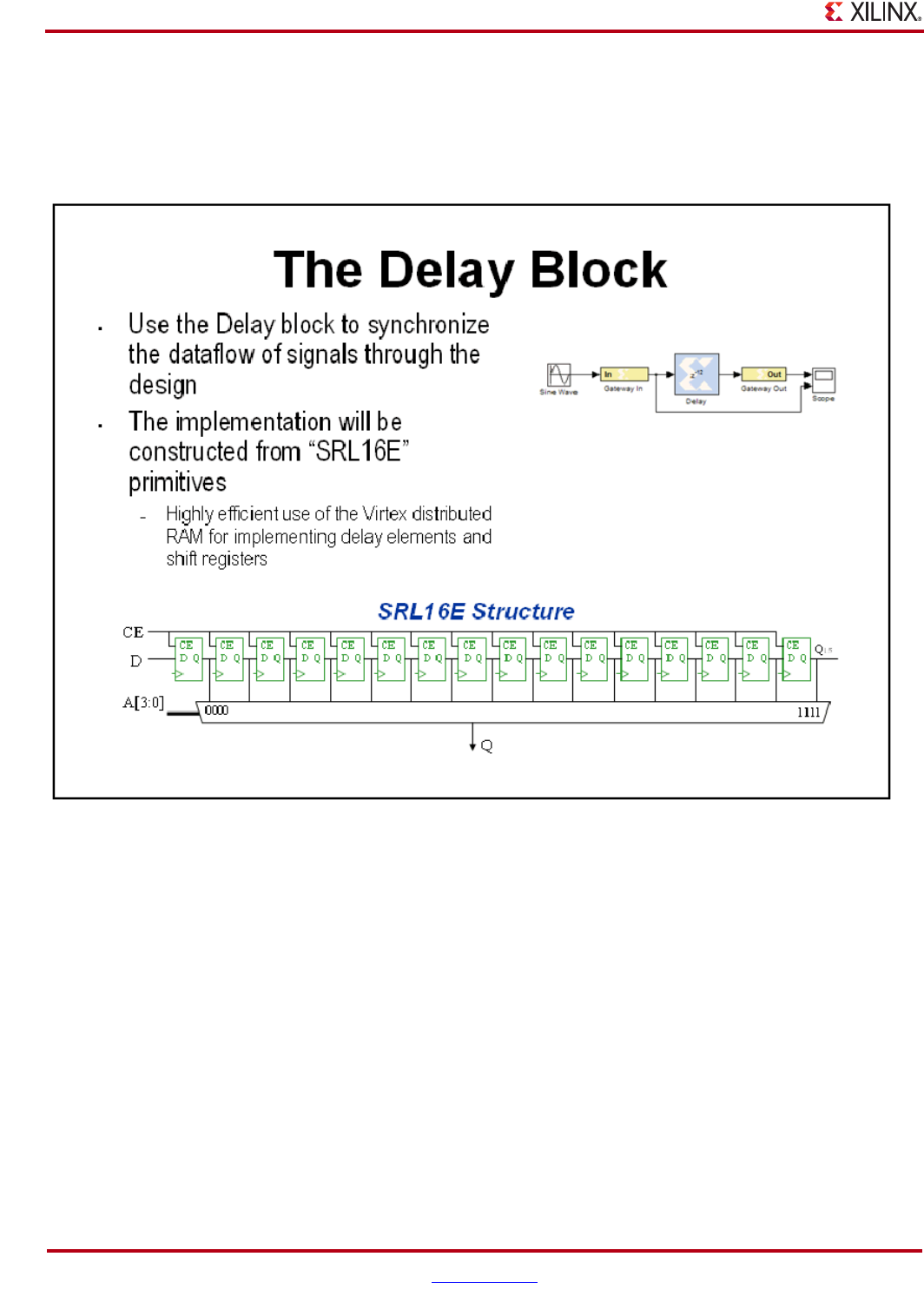

The Delay Block
The Delay block is used to synchronize dataflow through the FPGA. This block maps to a highly-efficient shift
register structure built from a slice lookup table called an SRL16 that is 85% smaller than using registers.
