Lesson 5 - Using Memories

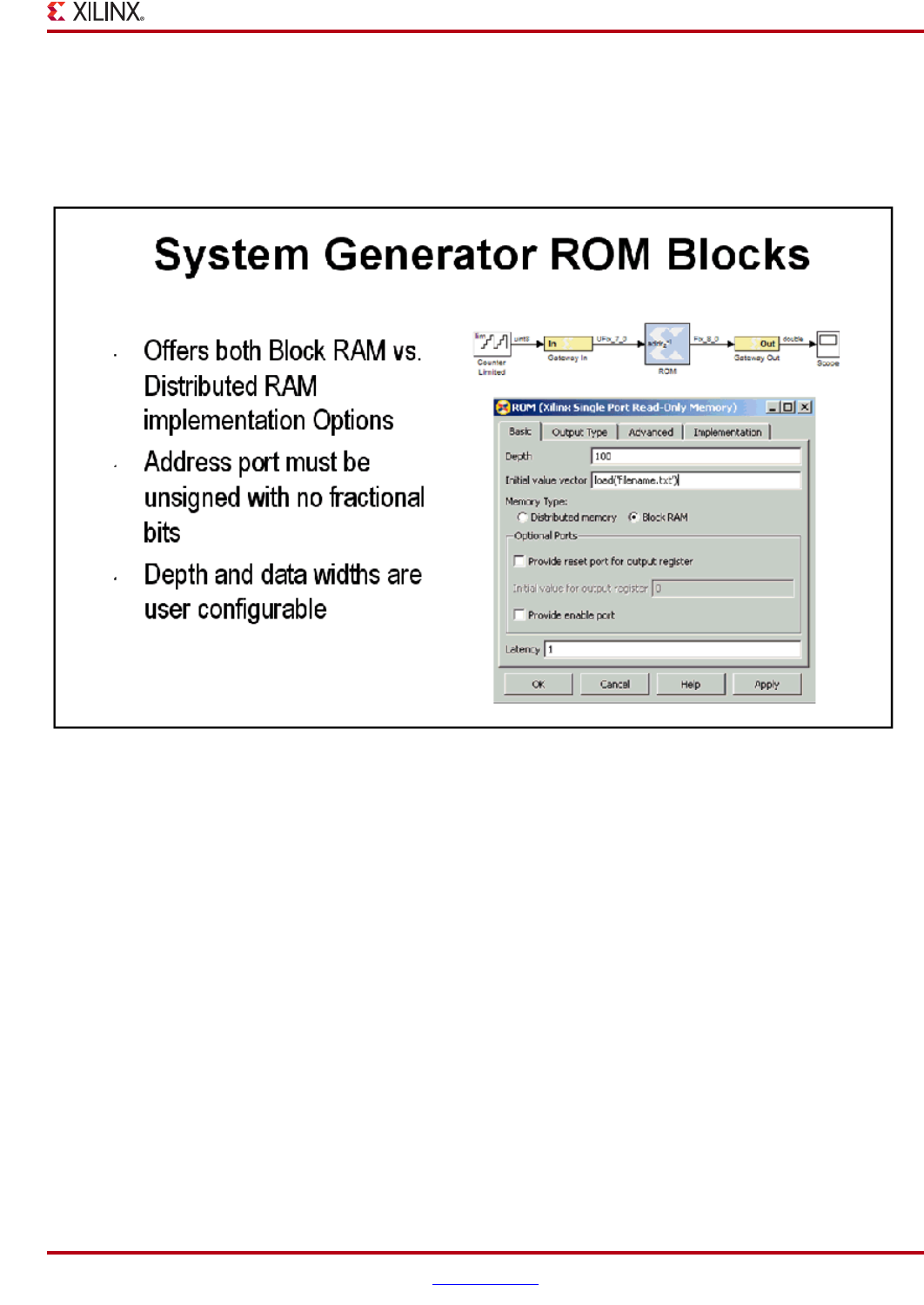

System Generator ROM Blocks
The ROM block supports an implementation in either Block- or Distributed RAM and is initialized through a
MATLAB command. The signal connected to the address port must be unsigned with no fractional bits
