Lesson 3 - System Control
Lesson 3 - System Control

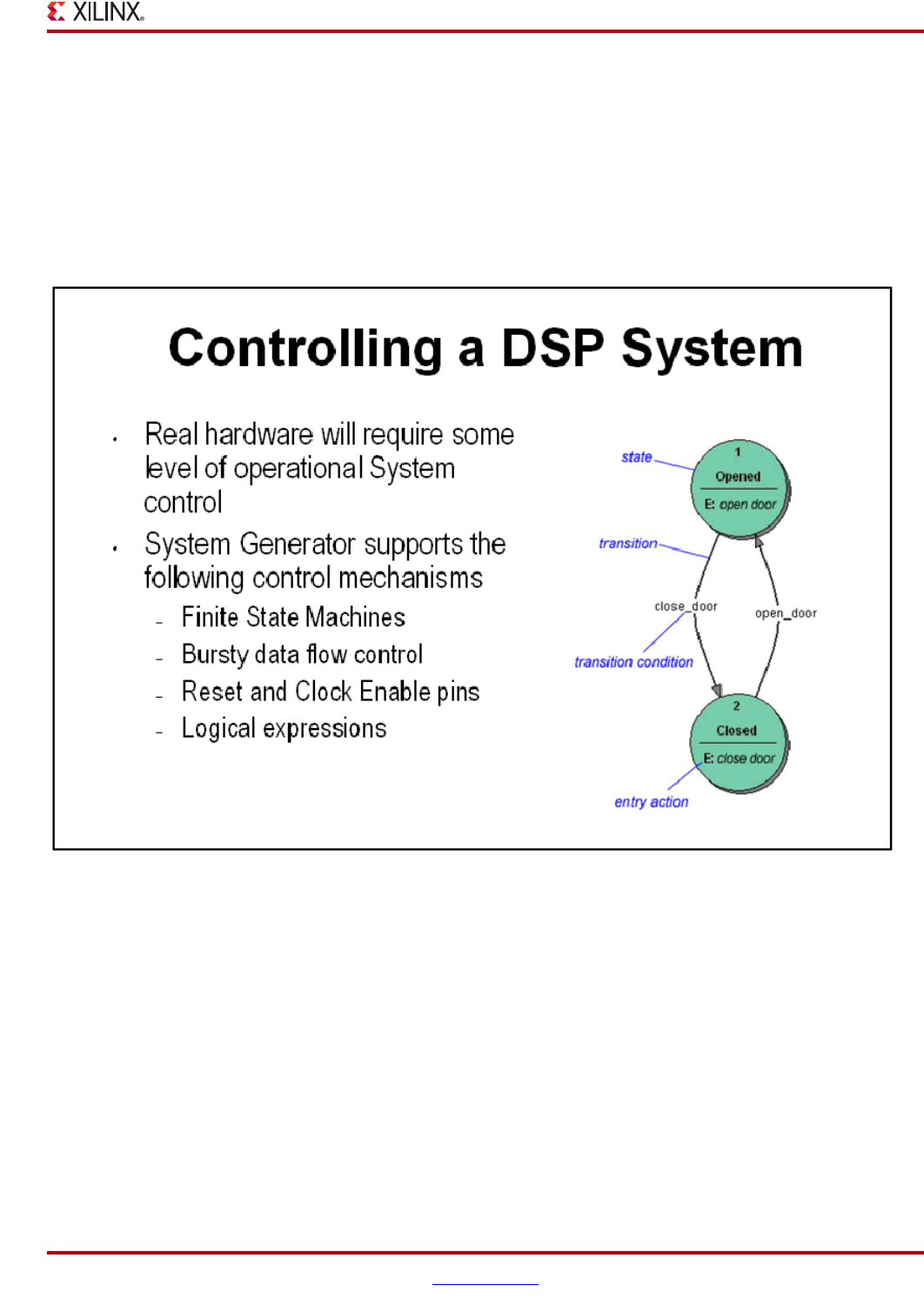

Controlling a DSP System
When you develop a DSP system in hardware, some level of control is usually required. This may include state
dependent behavior or simply performing operations such as filter coefficient updating. System-level control may
also be needed for controlling bursty data such as non-streaming FFTs.
