60 www.xilinx.com System Generator for DSP Getting Started Guide
UG639 (v 12.2) July 23, 2010
Chapter 4: Getting Started

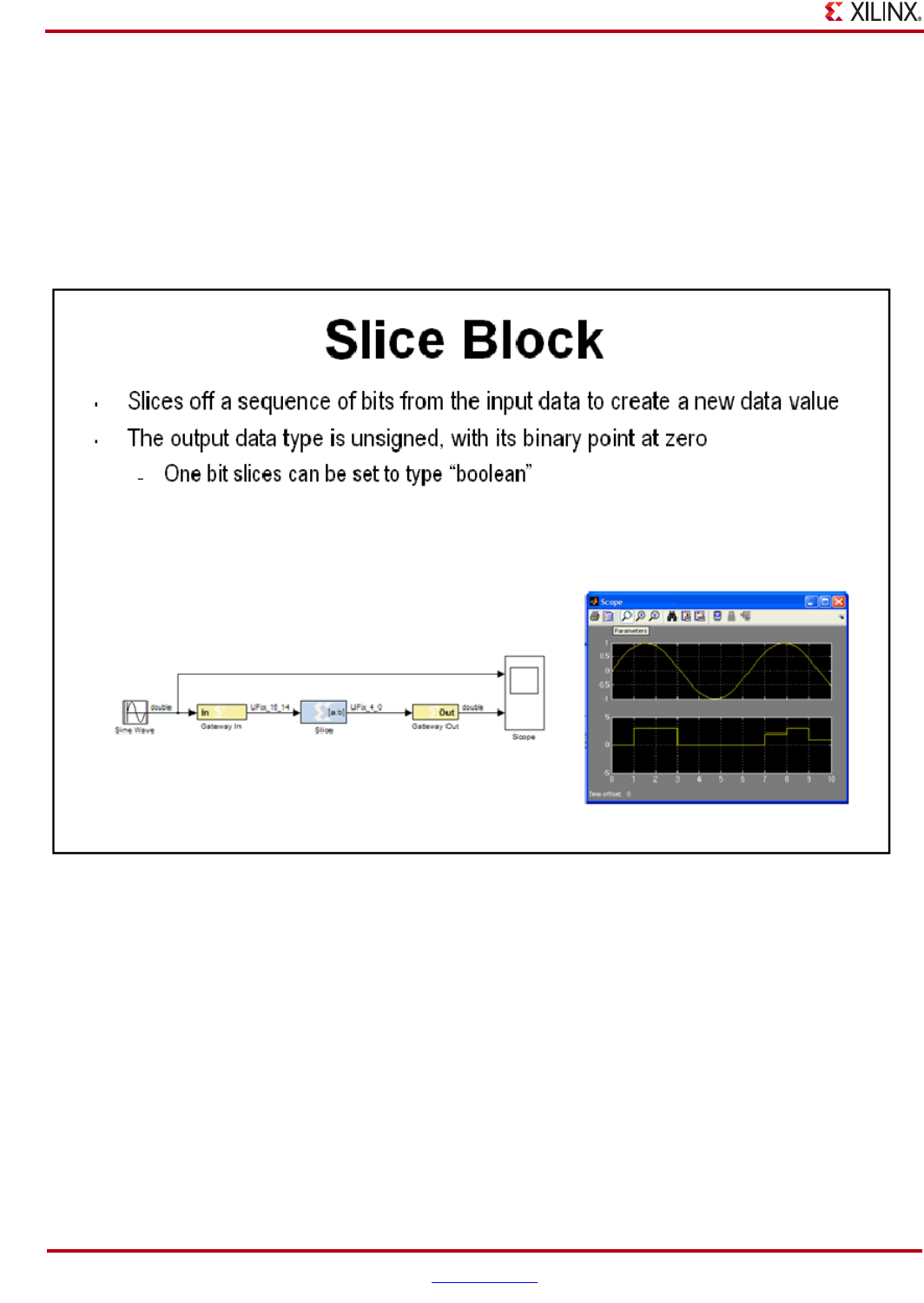

Slice Block
The Slice block is used to access individual bits of a quantized number. This block provides several mechanisms by
which the sequence of bits can be specified. If the input type is known at the time of parameterization, the various
mechanisms do not offer any gain in functionality. If, however, a Slice block is used in a design where the input data
width or binary point position are subject to change, the variety of mechanisms becomes useful. For example, the
block can be configured to always extract only the top bit of the input, or only the integer bits, or only the first three
fractional bits.
