50 www.xilinx.com System Generator for DSP Getting Started Guide
UG639 (v 12.2) July 23, 2010
Chapter 4: Getting Started

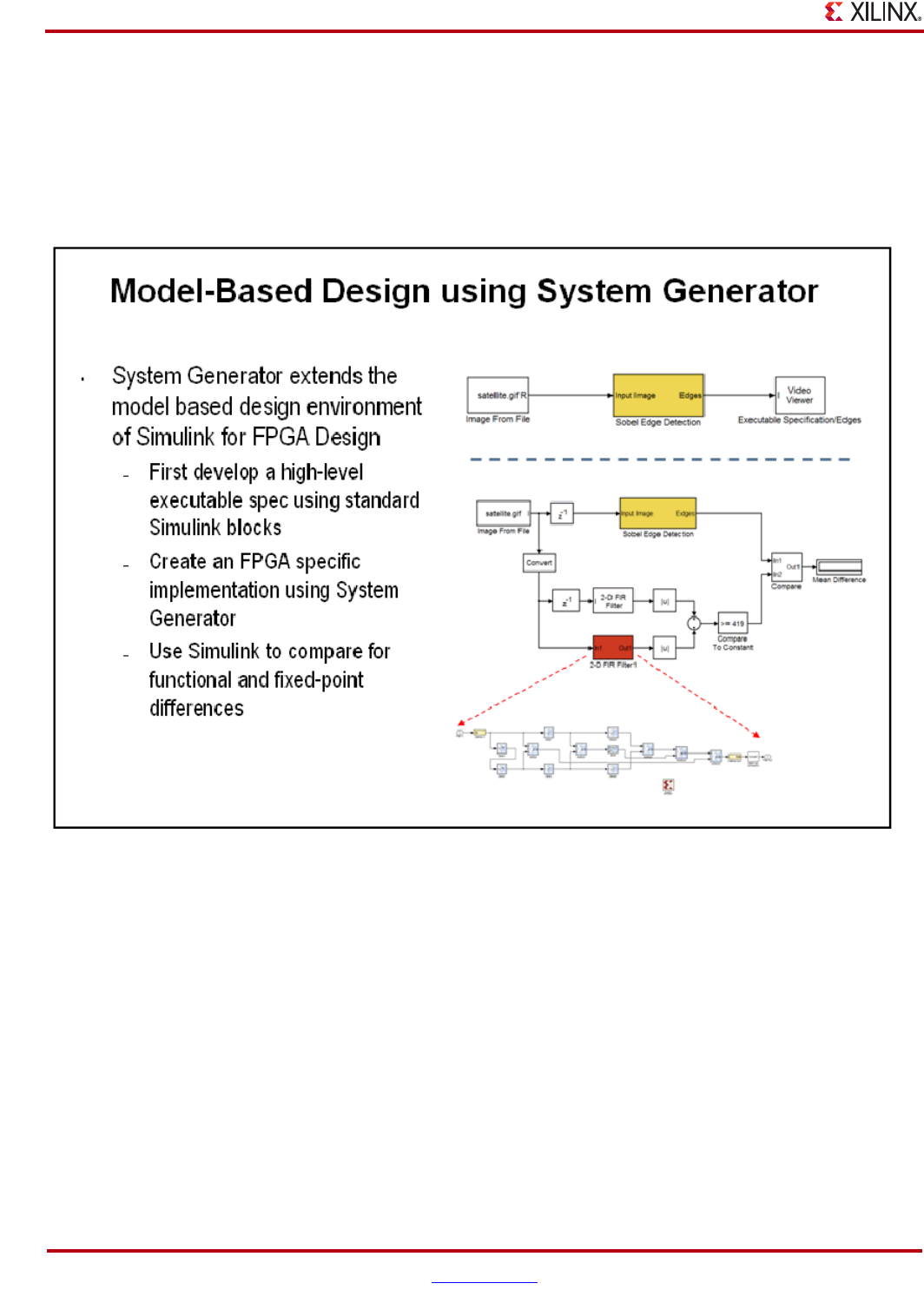

Model-Based Design using System Generator
Model-based design refers the design practice of creating a high-level executable specification using the standard
Simulink blocksets or MATLAB first to define the desired functional behavior with minimal hardware detail. This
executable spec is then used as a reference model while the hardware representation is specified using the Xilinx
DSP blockset.
