System Generator for DSP Getting Started Guide www.xilinx.com 17
UG639 (v 12.2) July 23, 2010

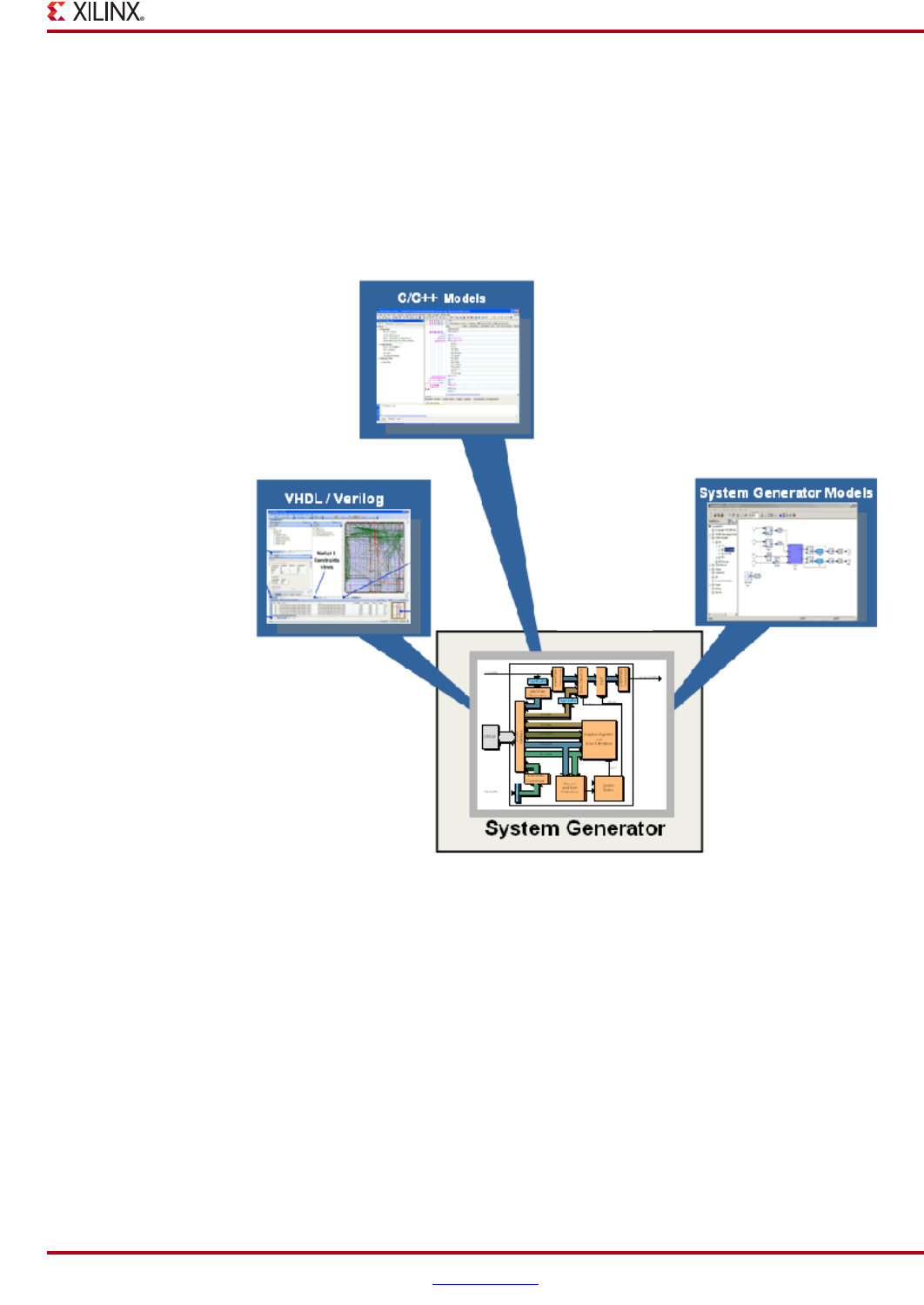

System Integration Platform
System Integration Platform
System Generator provides a system integration platform for the design of DSP FPGAs
that allows the RTL, Simulink, MATLAB and C/C++ components of a DSP system to come
together in a single simulation and implementation environment. System Generator
supports a black box block that allows RTL to be imported into Simulink and co-simulated
with either ModelSim or Xilinx
® ISE® Simulator. System Generator also supports the
inclusion of a MicroBlaze
® embedded processor running C/C++ programs.
