IQN1 x IQN2
3-53
3IQN1 x IQN2
Purpose Multiply two IQ numbers that are in different Q formats
Library tiiqmathlib in Embedded Target for TI C2000 DSP
Description This block multiples two IQ numbers when the numbers are represented in
different Q formats. The format of the result is specified in the following
field:
Output Q value — Q value from 1 to 30 that specifies the precision of the
output

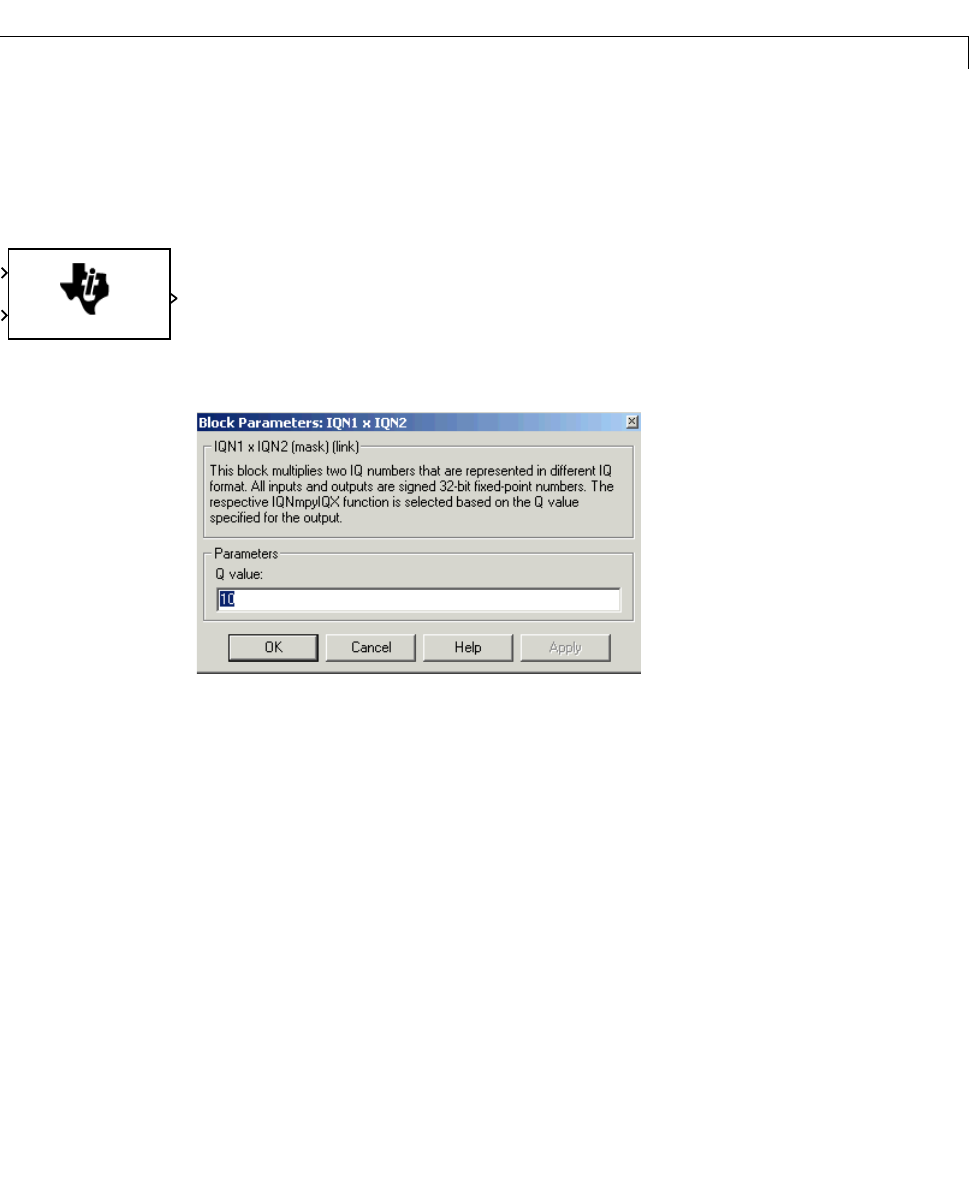

Dialog Box
See Also
Absolute IQN, Arctangent IQN, Division IQN, Float to IQN, Fractional part
IQN, Fractional part IQN x int32, Integer part IQN, Integer part IQN x int32,
IQN to Float, IQN x int32, IQN x IQN, IQN1 to IQN2, Magnitude IQN,
Saturate IQN, Square Root IQN, Trig Fcn IQN
A
B
Y
IQNmpyIQx
IQmath
IQN1 x IQN2
