IQN x IQN
3-51
3IQN x IQN
Purpose Multiply two IQ numbers
Library tiiqmathlib in Embedded Target for TI C2000 DSP
Description This block multiplies two IQ numbers. Optionally, it can also round and
saturate the result.
Multiply option — Type of multiplication to perform
•
Multiply — Multiply the numbers.
•
Multiply with Rounding — Multiply the numbers and round the result.
•
Multiply with Rounding and Saturation — Multiply the numbers and
round and saturate the result to the maximum value.

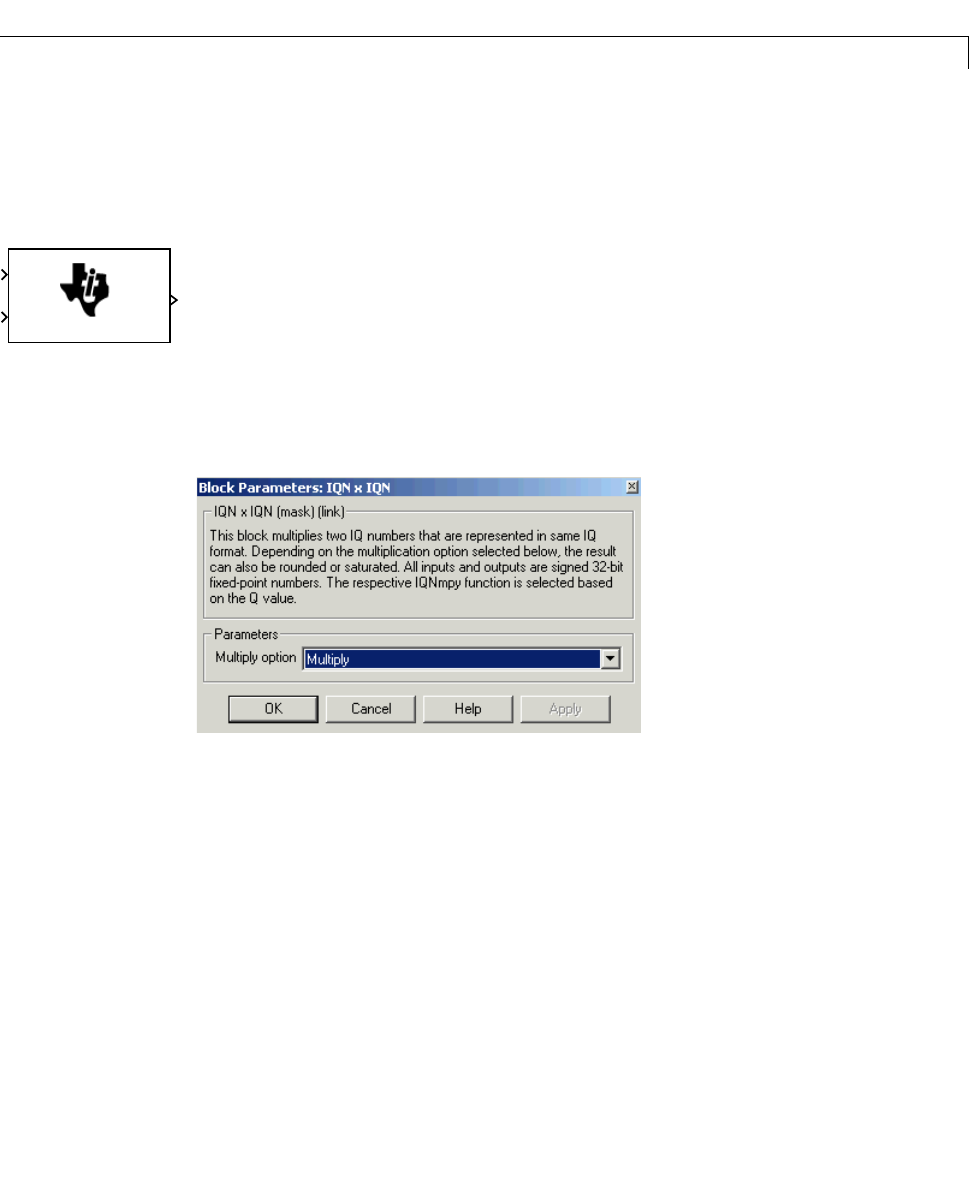

Dialog Box
See Also
Absolute IQN, Arctangent IQN, Division IQN, Float to IQN, Fractional part
IQN, Fractional part IQN x int32, Integer part IQN, Integer part IQN x int32,
IQN to Float, IQN x int32, IQN1 to IQN2, IQN1 x IQN2, Magnitude IQN,
Saturate IQN, Square Root IQN, Trig Fcn IQN
A
B
Y
IQNmpy
IQmath
IQN x IQN
