C24x PWM
3-18
Show additional parameters — Check to display the dialog box with
additional PWM parameters
PWM# control logic — Control logic trigger for the PWM. Active high causes
the pulse value to go from low to high and
Active low causes the pulse value
to go from high to low.
Use deadband for PWM#/PWM# — Enables a deadband area of no signal
overlap at the beginning of particular PWM pair signals
Deadband prescaler — Number of clock cycles, which when multiplied by the
Deadband period, determines the size of the deadband. Selectable values are 1,
2, 4, 8, 16, and 32.
Deadband period — Value that, when multiplied by the Deadband prescaler,
determines the size of the deadband. Selectable values are from 1 to 15.

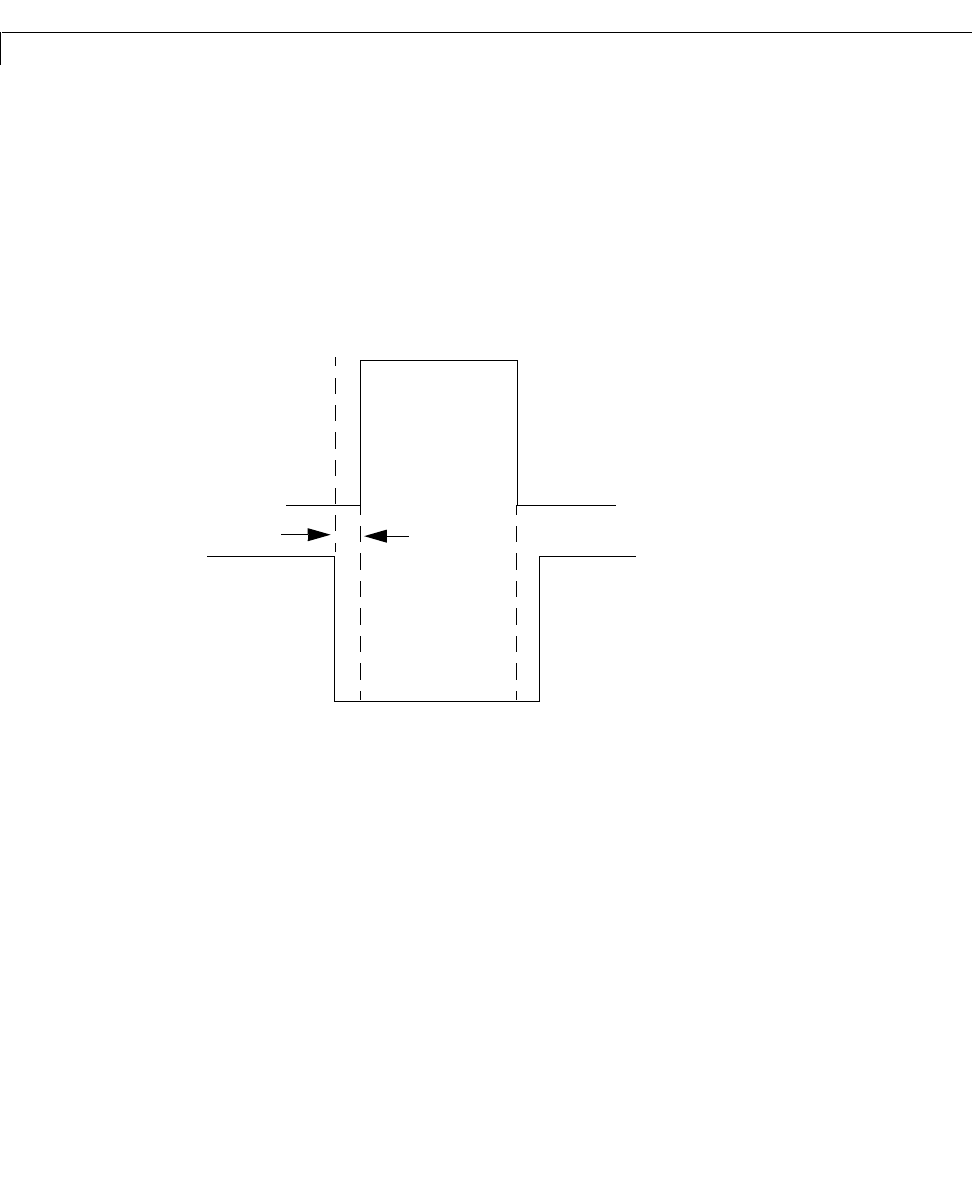

Deadband
PWM active high
PWM active low
