C24x CAN Receive
3-12
Sample time — Frequency with which the mailbox is polled to determine if a
new message has been received. A new message causes a function call to be
emitted from the mailbox.
Data type — Type of the data in the 8-byte data vector. Valid values are
uint16 or unit32.
Output message length — Select to output the message length in bytes to the
third output port. If not selected, the block has only two output ports.

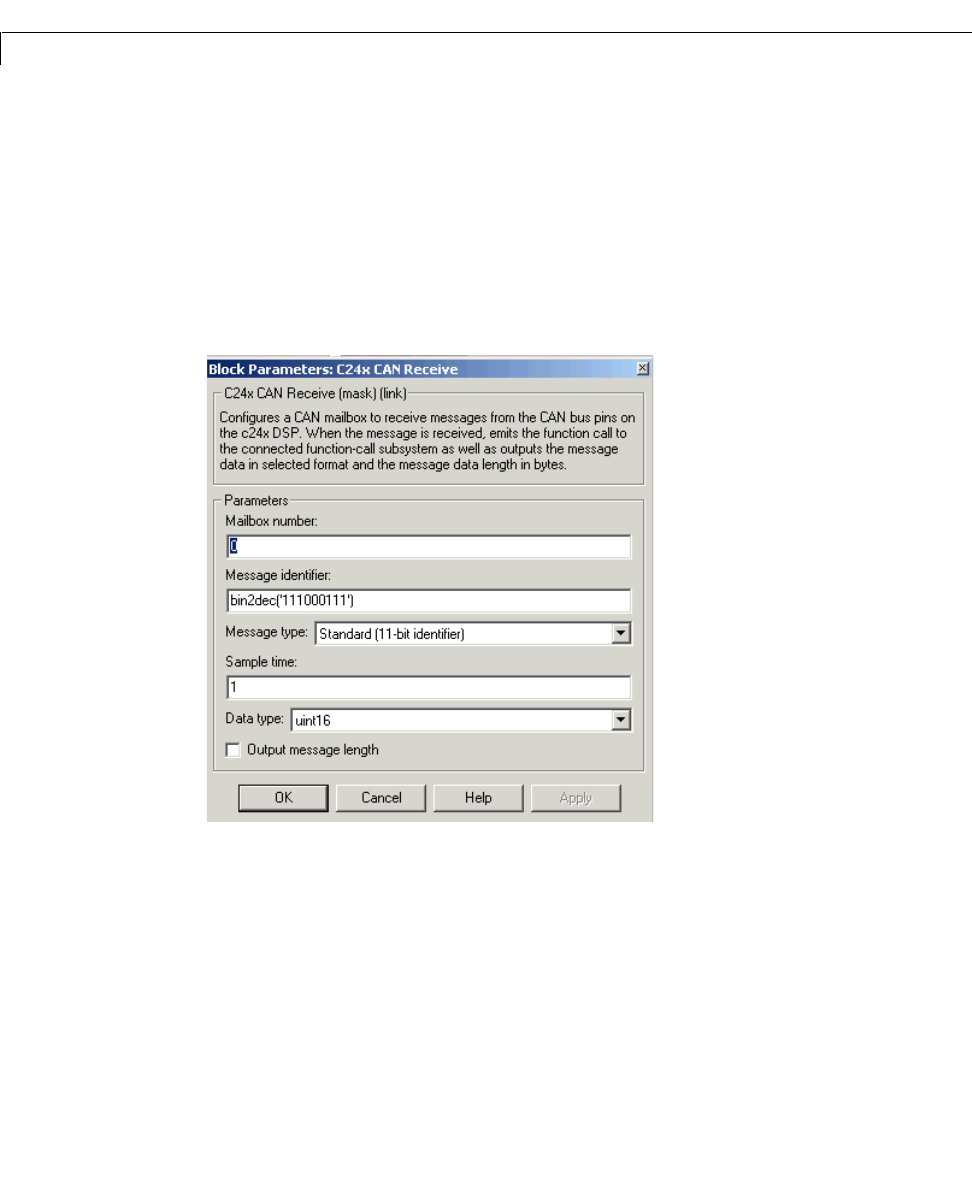

Dialog Box
See Also
C24x CAN Transmit
