Using the c2000lib Blockset
1-25

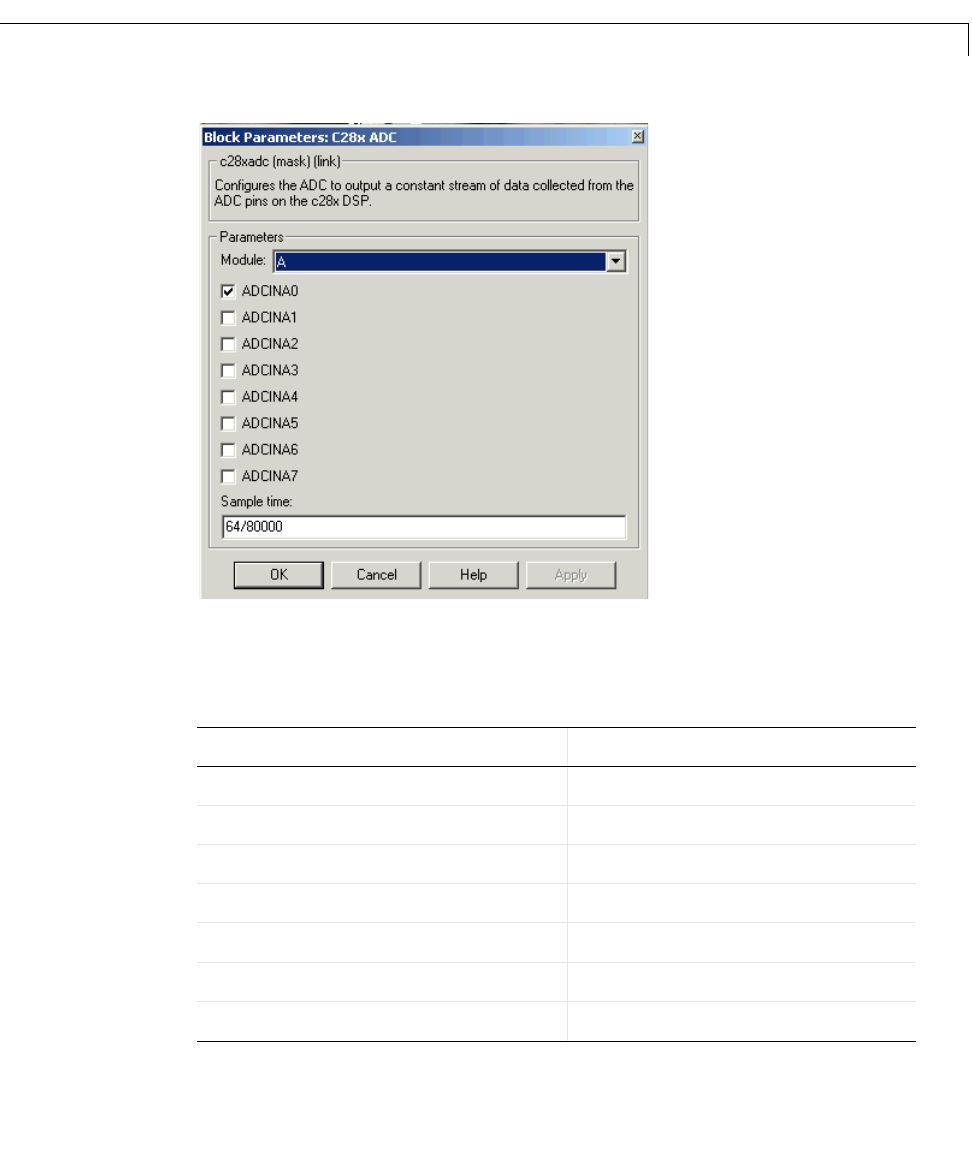

3 Drag the C28x PWM block into your model. Double-click the PWM block in
the model and set the following parameters. Refer to the C28x PWM
reference page for information on these fields.
Field Parameter
Module
A
Waveform period source
Specify via dialog
Waveform period
64000
Waveform type
Asymmetric
Enable PWM1/PWM2
selected
Pulse width source
Input port
Show additional parameters
selected
