1 Getting Started
1-24
Adding Blocks to the Model

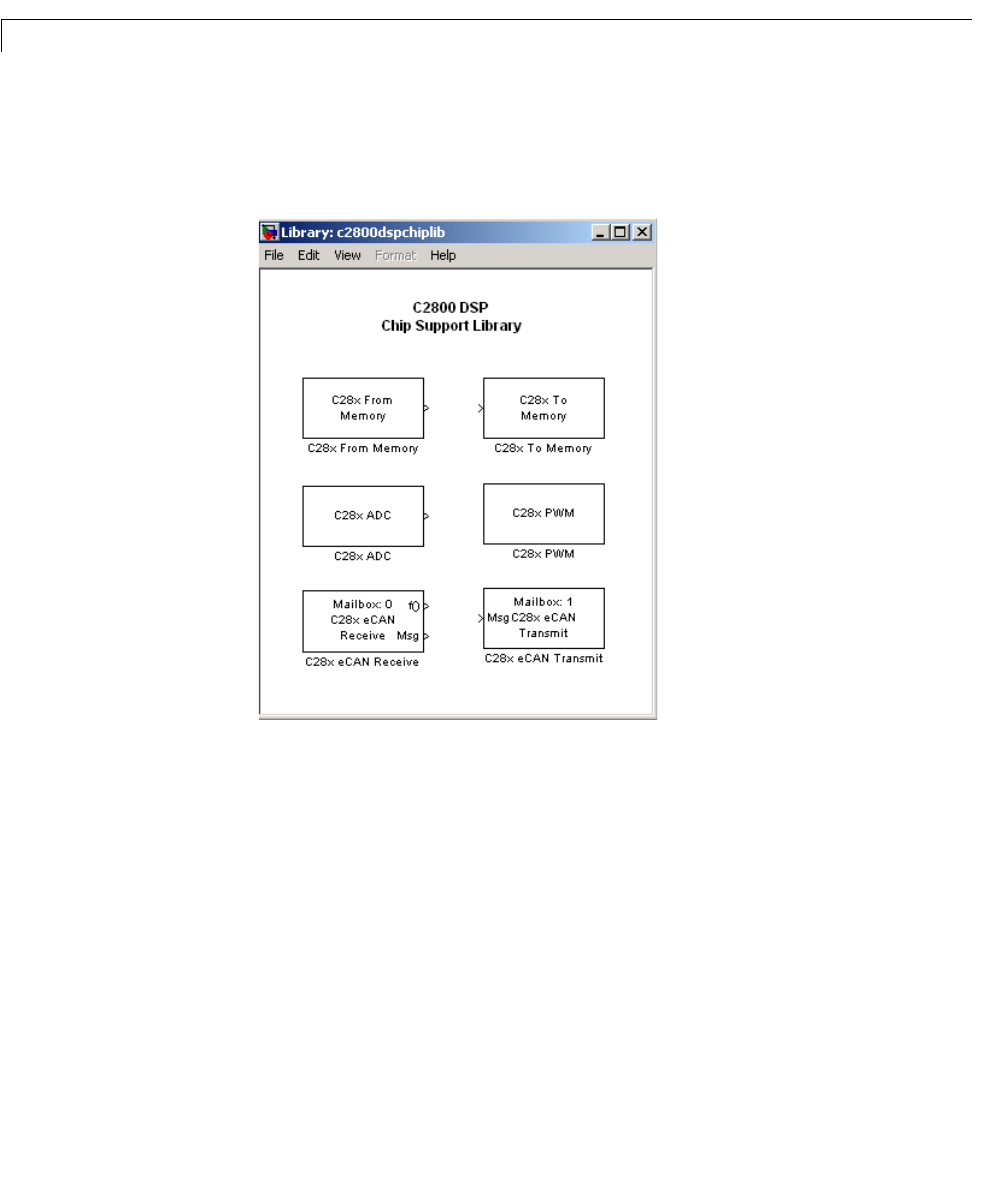

1 Double-click the C2800 DSP Chip Support Library to open it.
2 Drag the C28x ADC block into your model. Double-click the ADC block in the
model and set the
Module to A, select only ADCINA0, and enter a Sample
time
of 64/80000. Refer to the C28x ADC reference page for information on
these fields.
