Using the c2000lib Blockset
1-15

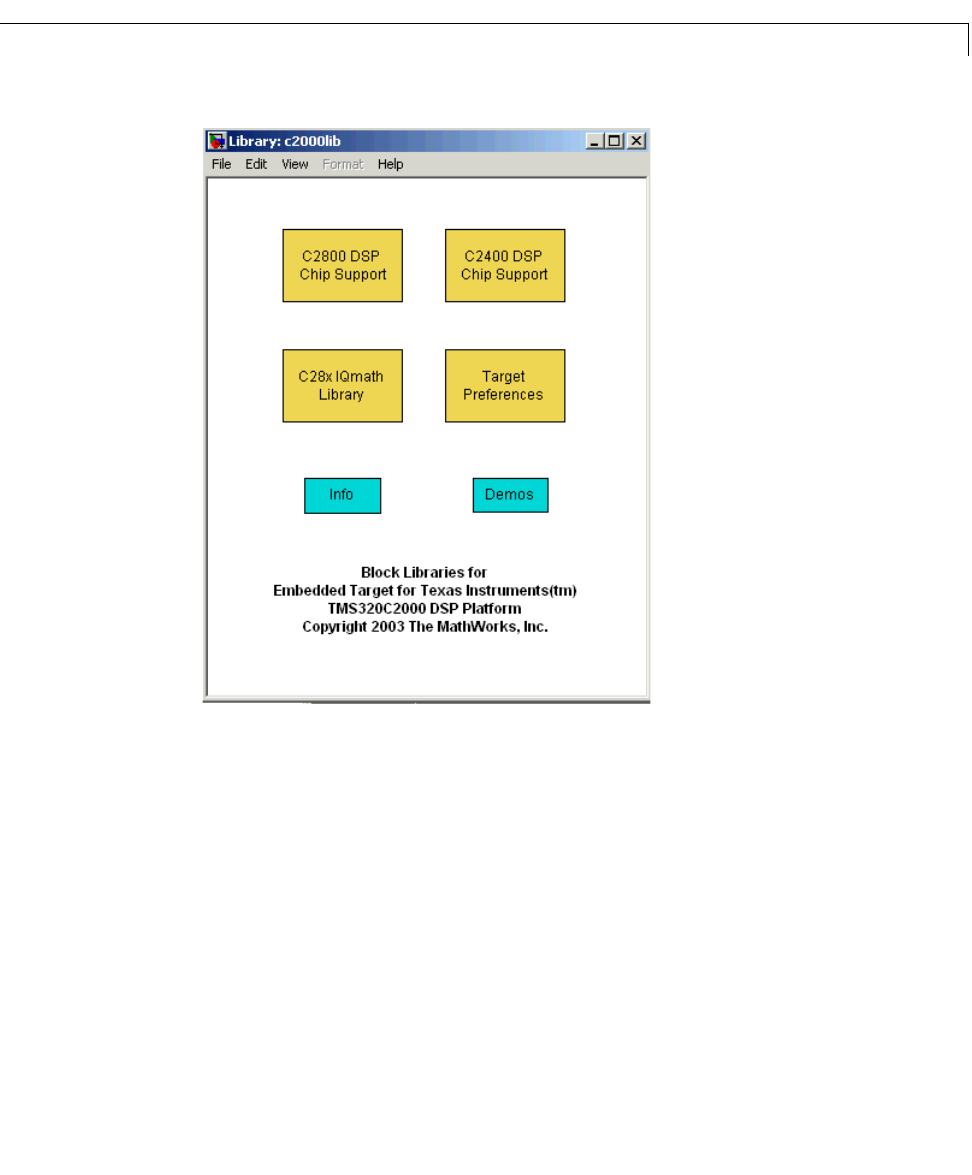

The libraries are
• C2800 DSP Core Support (
c2800dsplib) — Blocks to configure the codec on
the F2812 eZdsp DSK or on the F2812 DSP
• C2400 DSP Core Support (
c2400dsplib) — Blocks to configure the codec on
the LF2407 eZdsp DSK or on the LF2407 DSP
• Target Preferences (
c2000tgtpreflib) — Blocks to specify target
preferences and options. You do not connect this block to any other block in
your model.
• C28x IQMath Library (
tiiqmathlib) — Math blocks for use with C2000
targets
• Info block — Online help
• Demos block — Demos window
