Saturate IQN
3-63
3Saturate IQN
Purpose Saturate an IQ value to specified limits
Library tiiqmathlib in Embedded Target for TI C2000 DSP
Description This block saturates an input IQ number to the specified positive and negative
limits. The returned value is an IQ number of the same Q value as the input.
Positive Limit — Maximum positive value to which to saturate
Negative Limit — Minimum negative value to which to saturate

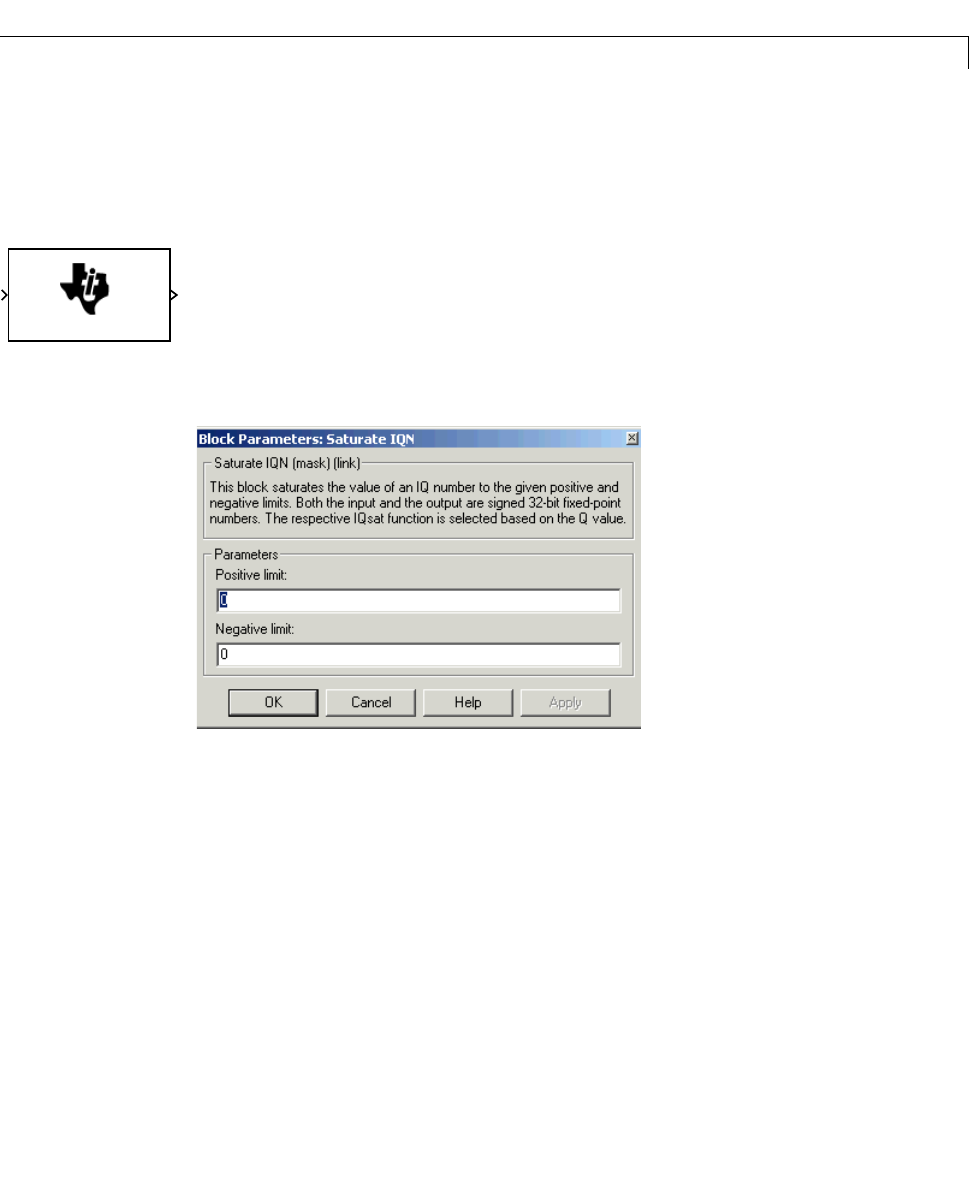

Dialog Box
See Also
Absolute IQN, Arctangent IQN, Division IQN, Float to IQN, Fractional part
IQN, Fractional part IQN x int32, Integer part IQN, Integer part IQN x int32,
IQN to Float, IQN x int32, IQN x IQN, IQN1 to IQN2, IQN1 x IQN2,
Magnitude IQN, Square Root IQN, Trig Fcn IQN
AY
IQsat
IQmath
Saturate IQN
