Magnitude IQN
3-62
3Magnitude IQN
Purpose Calculate the magnitude of two IQ numbers
Library tiiqmathlib in Embedded Target for TI C2000 DSP
Description This block calculates the magnitude of two IQ numbers using
The output is an IQ number in the same Q format as the input.

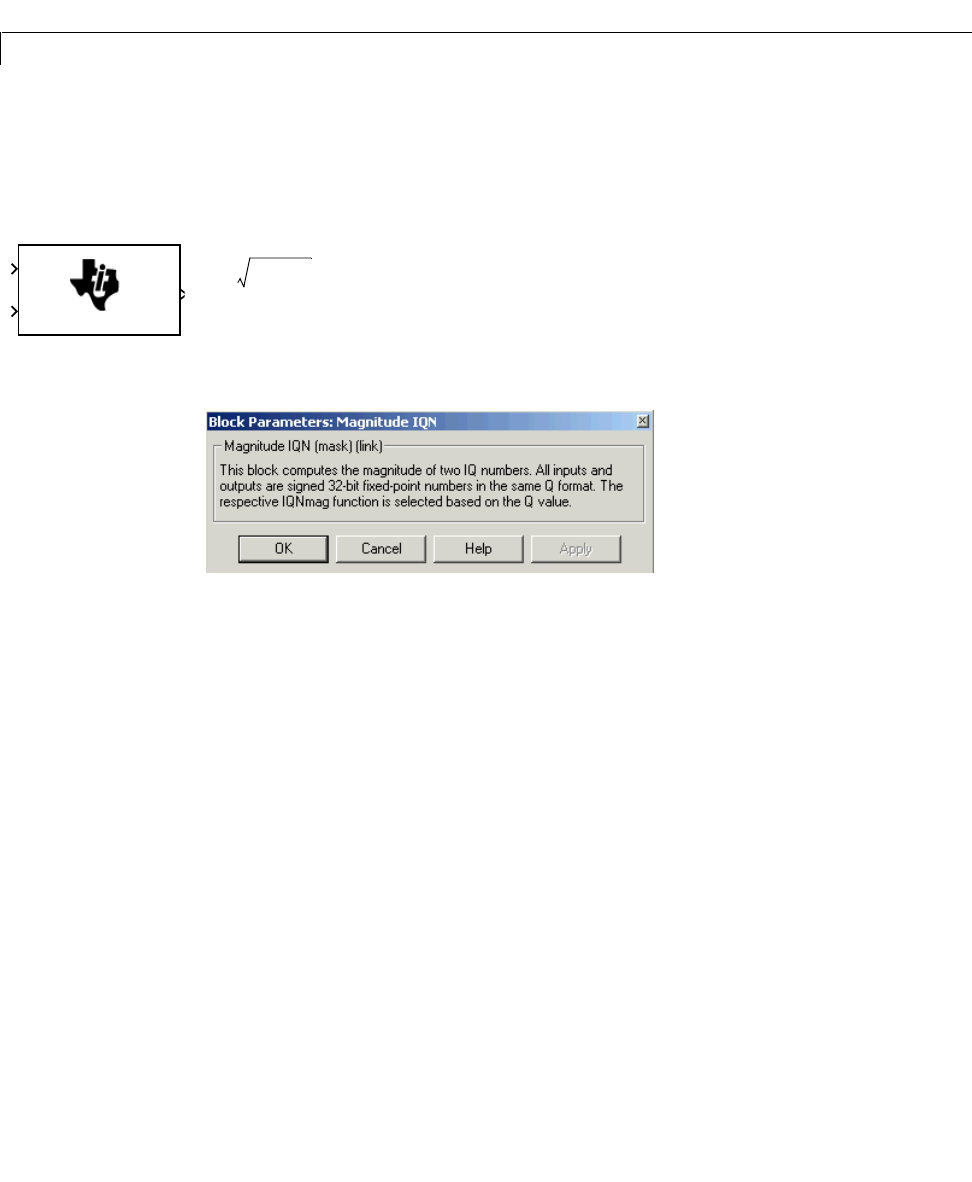

Dialog Box
See Also
Absolute IQN, Arctangent IQN, Division IQN, Float to IQN, Fractional part
IQN, Fractional part IQN x int32, Integer part IQN, Integer part IQN x int32,
IQN to Float, IQN x int32, IQN x IQN, IQN1 to IQN2, IQN1 x IQN2, Saturate
IQN, Square Root IQN, Trig Fcn IQN
A
B
Y
IQNmag
IQmath
Magnitude IQN
a
2
b
2
+
