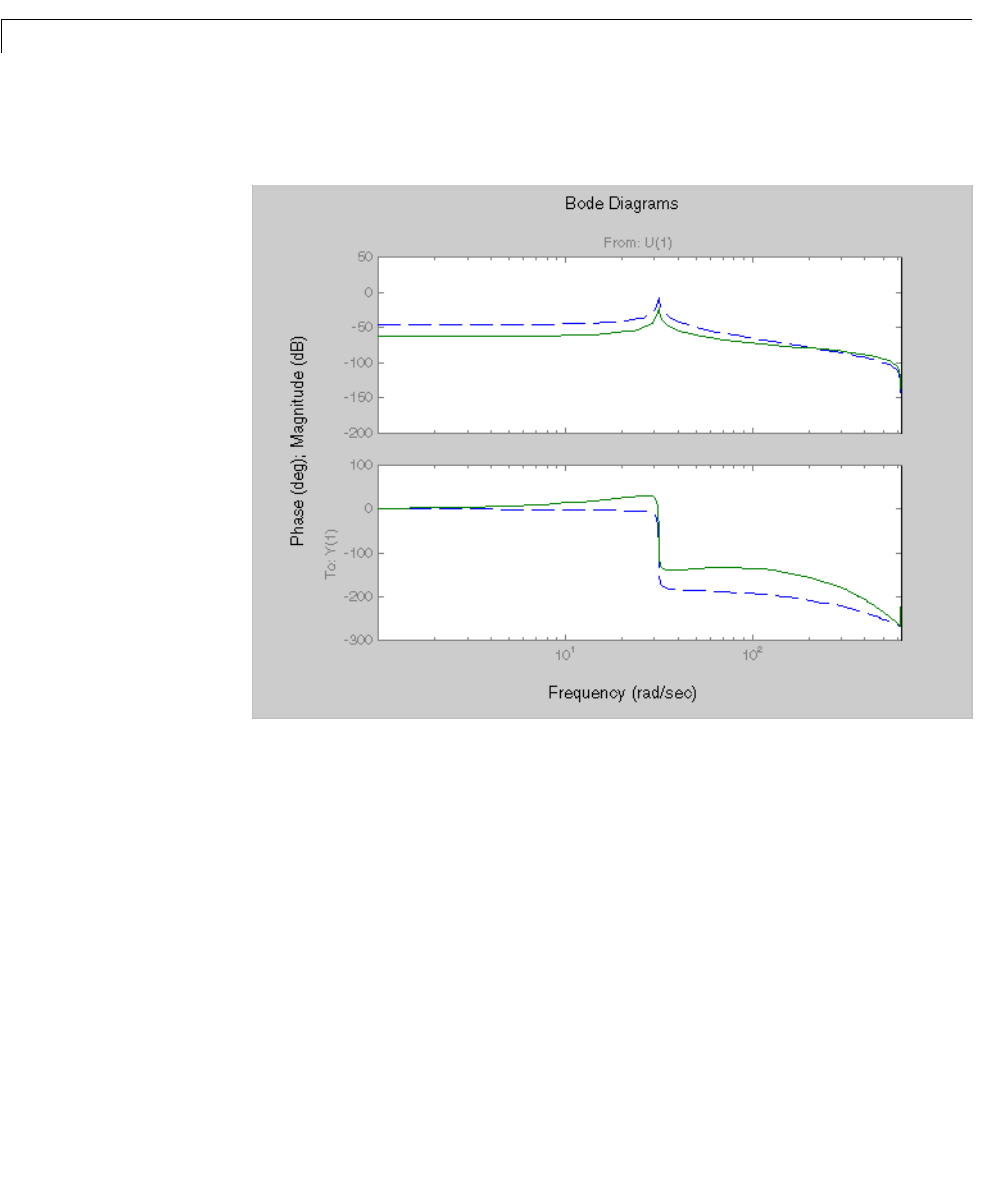

The p lant response is the dashed line and the open-loop response with the
compensator is the solid line.
The plot above shows that the compensator has shifted up the phase plot
(added lead) in the frequency range rad/sec.
