9 Design Case Studies

9-16

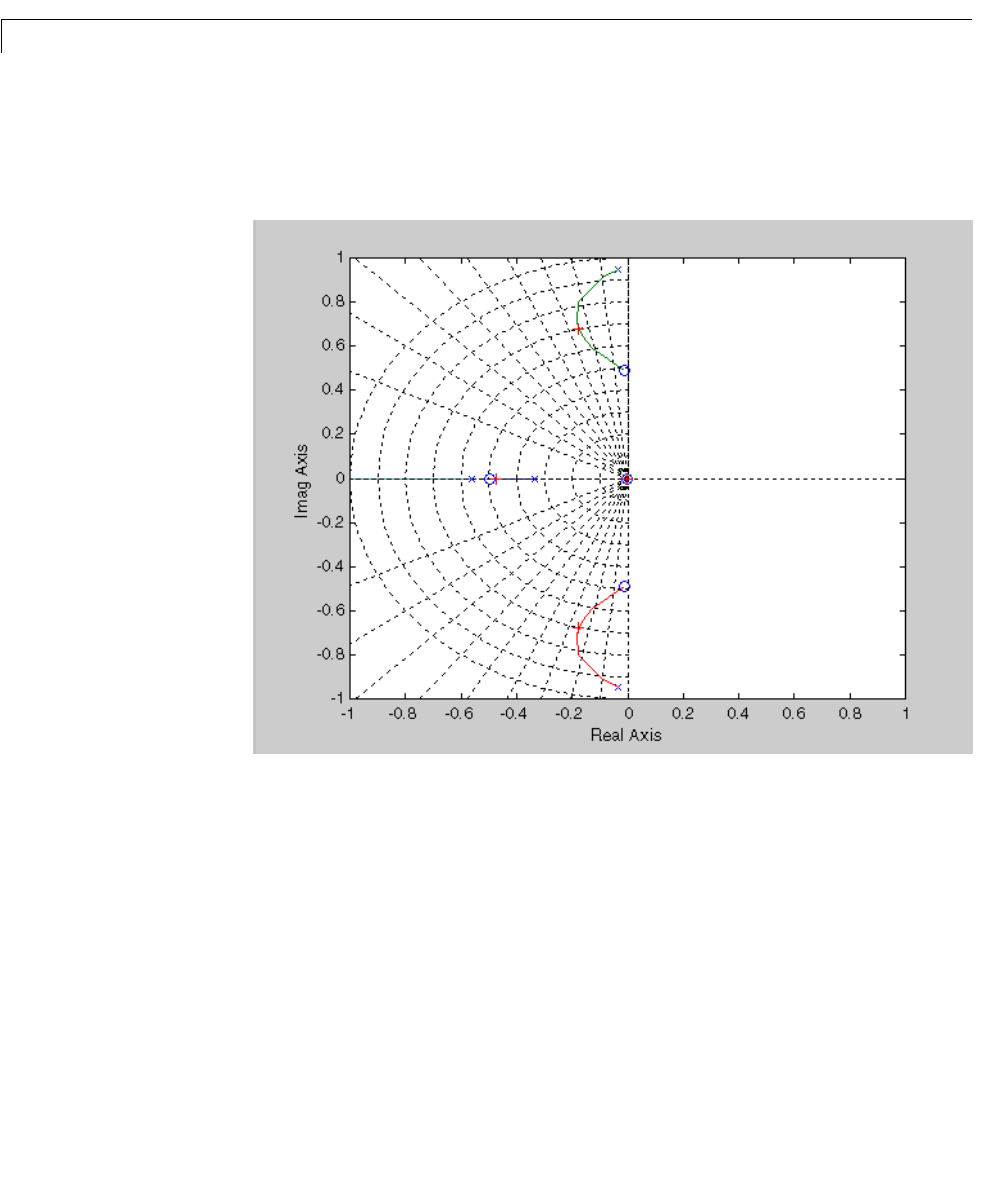

and draw another root locus for this open-loop model.

rlocus(–oloop)

sgrid

Now the maximum damping is about . You ca n select the gain

providing maximum damping graphically by

[k,poles] = rlocfind(–oloop)

0.25
