Additional Root Locus Design GUI Features
8-43

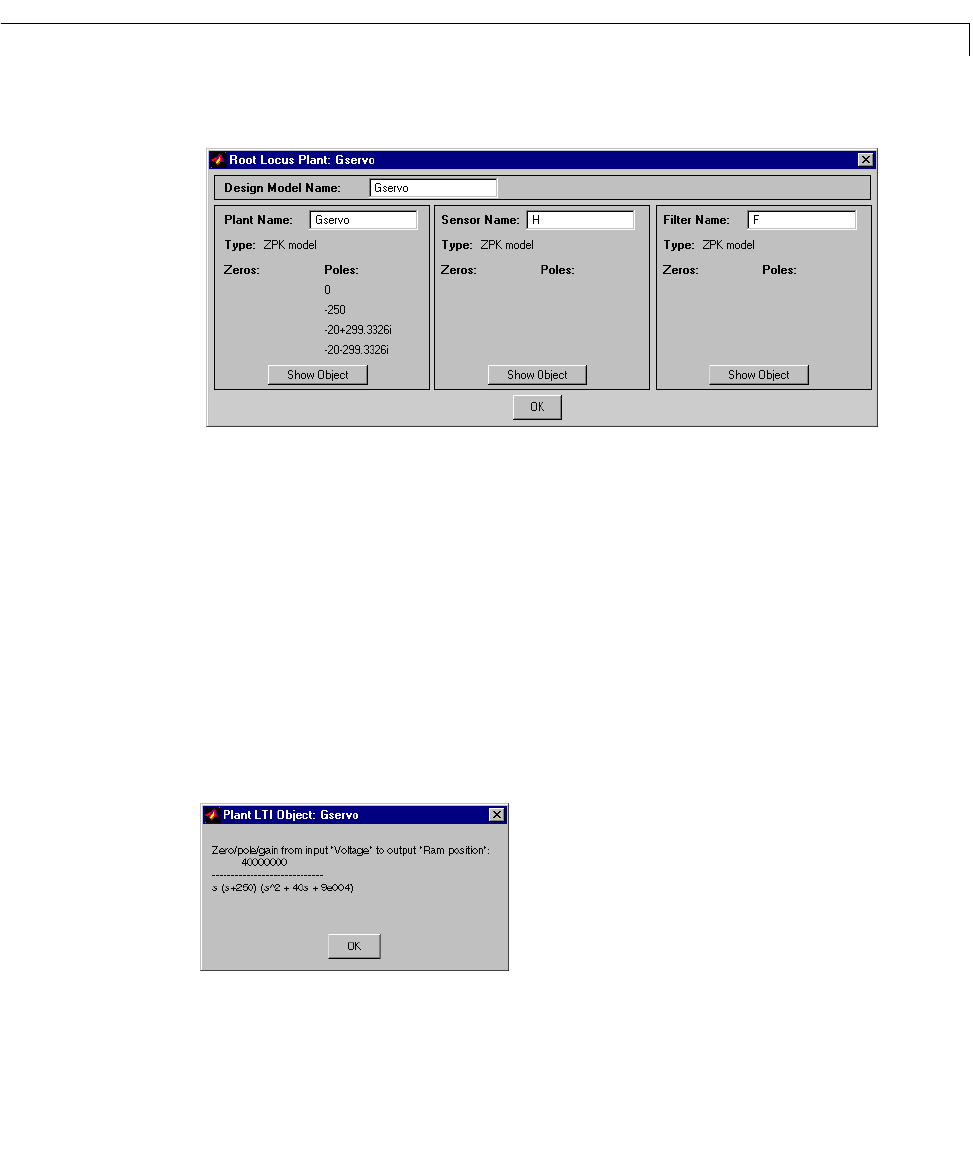

The following window opens.
For each component of the design model, this window t ells you:
• The component name
• The type of LTI model that the component is (that is,
ss, zpk,ortf)
• The component’s pole and zero locations
• The associated numerator and denominator of the model transfer function
You can edit any of the model names in the textboxes provided. Selecting
OK
closes this window and implements the changes you made to design model
names.
Before closing this window, you can also use the
Show Ob ject buttons in this
window to provide a MATLAB display of the associated LTI model. The
following is the information provided for the plant.
Select
OK to close this window.
