User`s guide

8 The Root Locus Design GUI
8-42

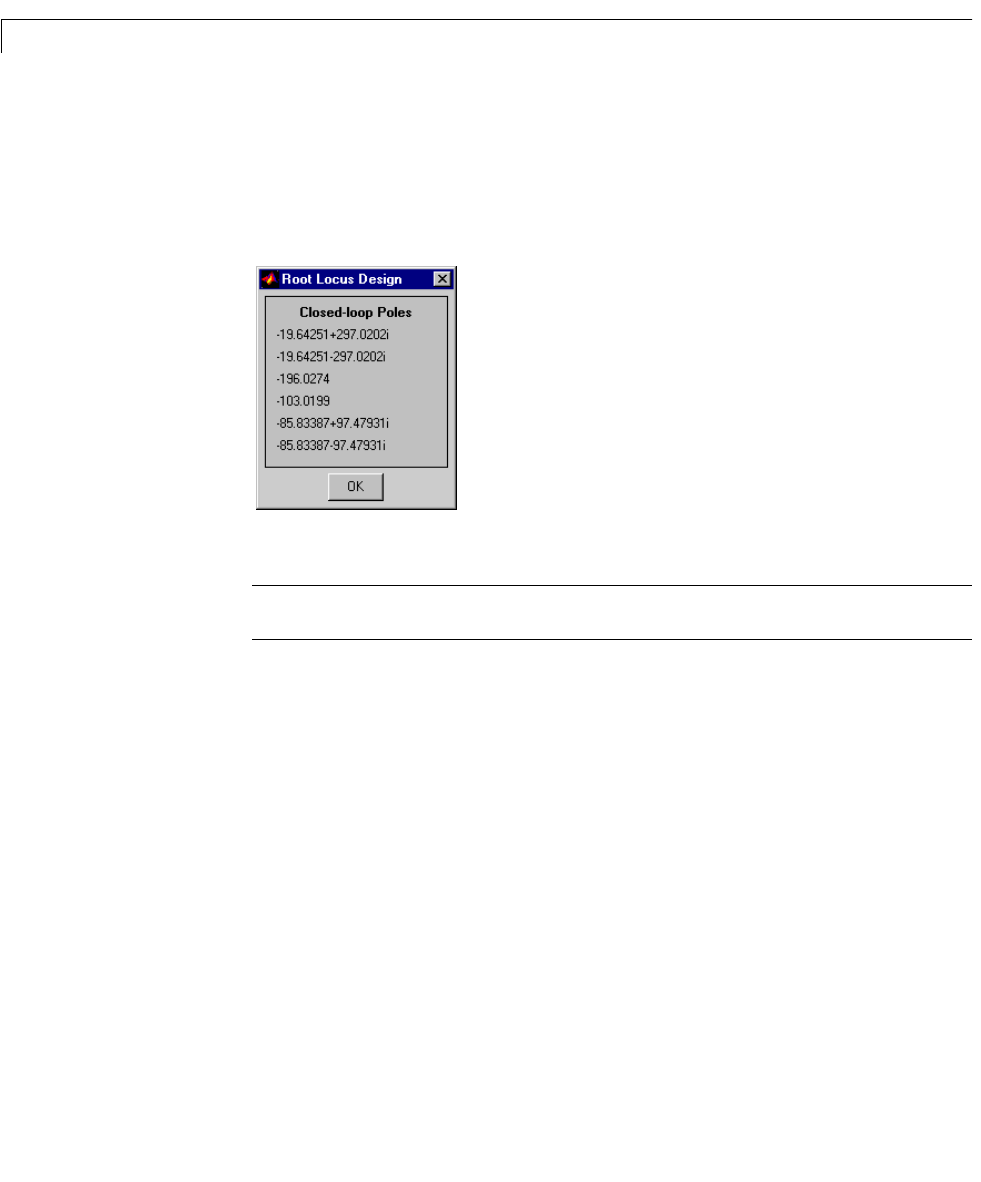

To view the current closed-loop poles:
• Select List Closed-Loop Poles fromtheTools menu. Ifyous elect thismenu,
a window listing the closed-loop poles associated with the current gain set
point opens.
• Click on the
OK button to close the window.
Note: You cannot e di t t he closed -l oo p p ole locatio n s l ist ed in this window.
To view the design model poles and zeros, you can either:
• Select th e
List Model Poles/Zeros item from the Tools menu.
• Click on any of t he desi gn mod el blo cks in the
Feedback Structure.These
are the yel low
F, P,andHblo cks.
