Importing a Linearized Analysis Model to the LTI Viewer
To linearize and load your firstanalysis model for the van der Pol example into
the LTI Viewer, select
Get Linearized Model on the Simulink menu on the

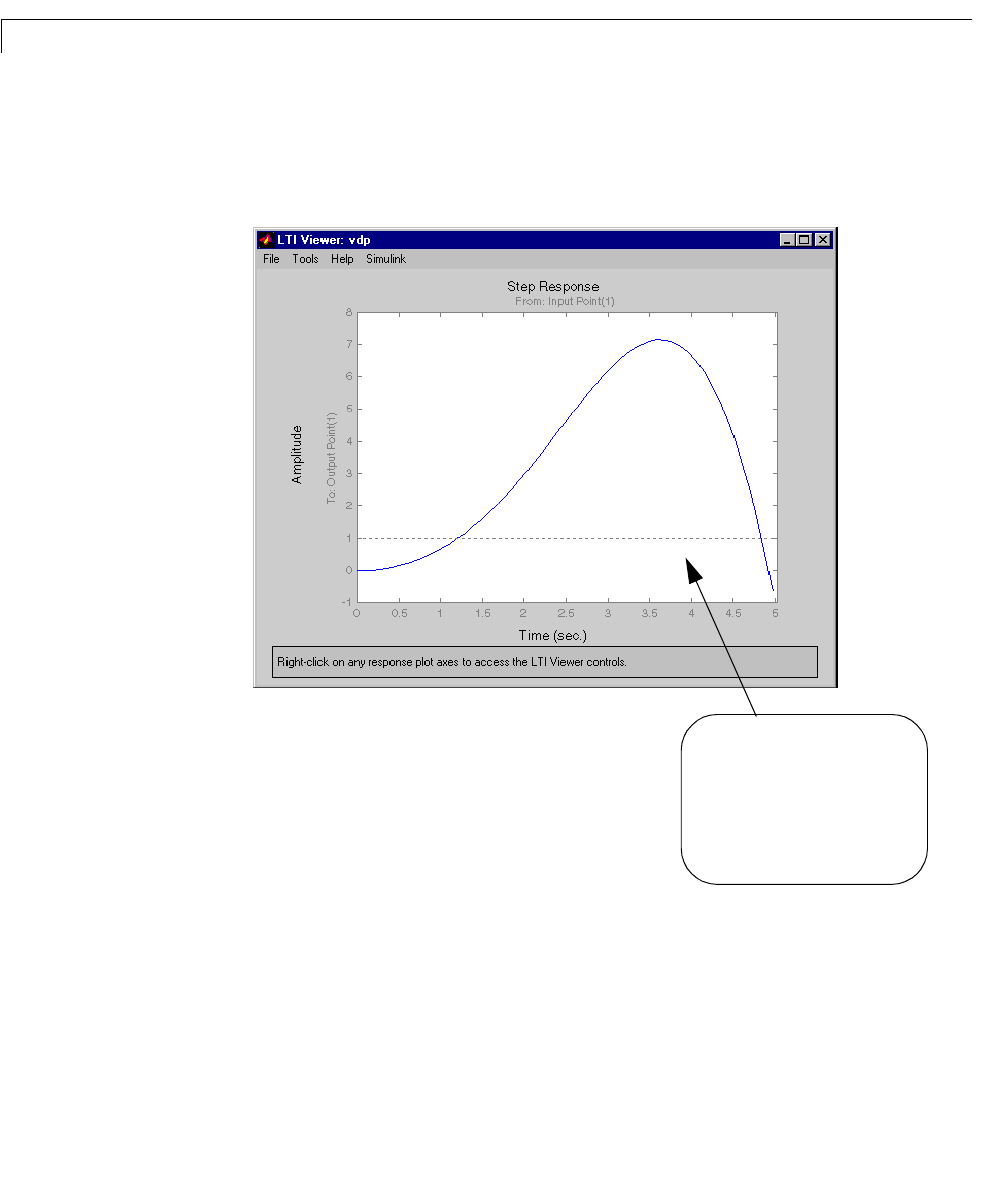

LTI Viewer. This produces the following response plot:
Each time you select
Get Linearized Model in the LTI Viewer’s Simulink
menu:
• The linearized analysis model is imported into the LTI Viewer workspace.
• The step response of the linearized analysis model is the default plot type
displayed.
The LTI Viewer displays the selected
response plot for all of the
models in
the LTI Viewer workspace. These are
listed in the Systems menu
available by right-clicking in the
plot region. The default plot type is
step response.
