rise time. For example, you can change the value for the settling time to 5% as
shown below.

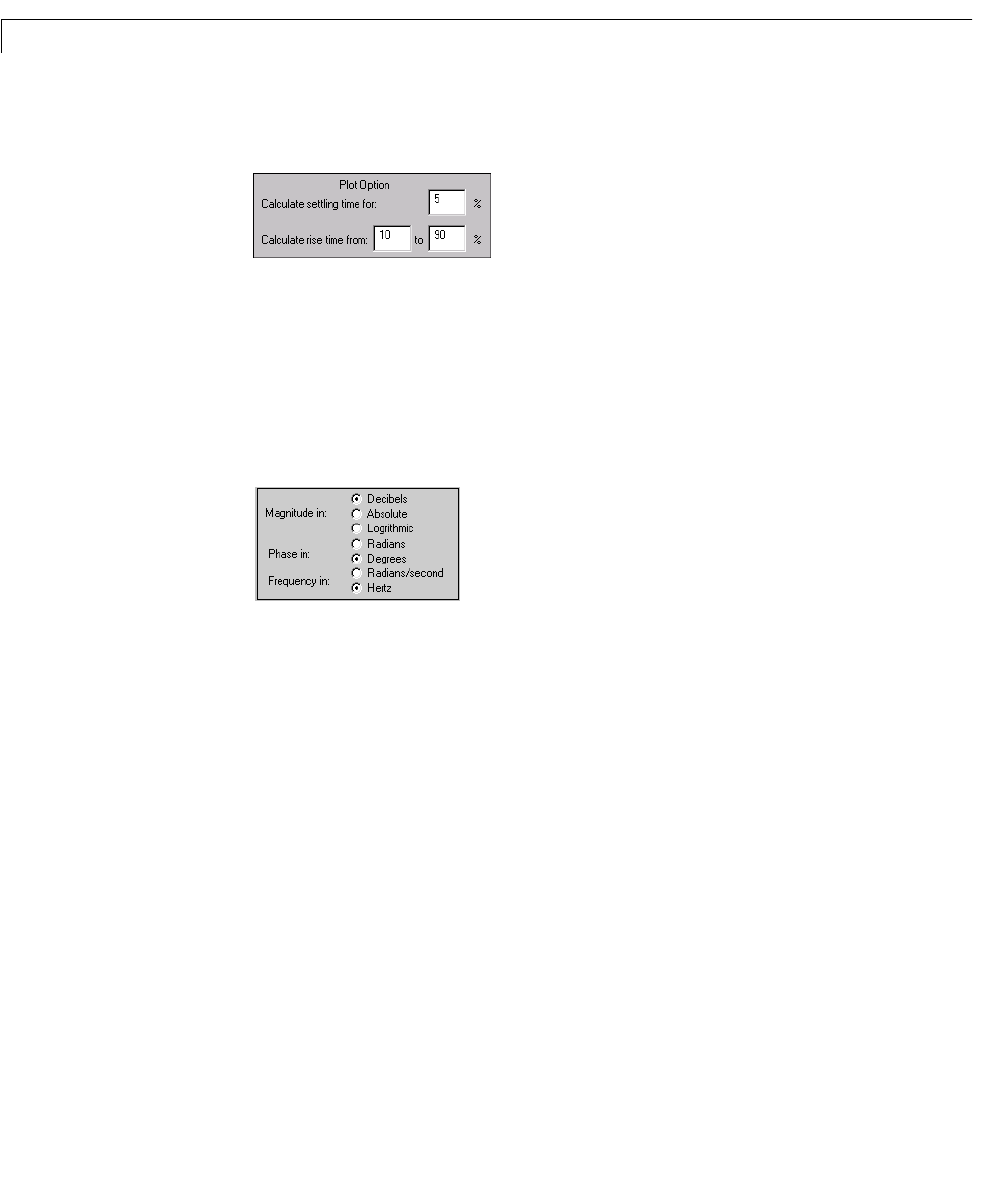

Figure 6-22: Changing the Settling Time Percentage Value to 5%
Changing the Frequency Domain Plot Units
In addition to providing options for specifying the frequencies used in the
frequency responses, the
Frequency Domain field allows you to choose the
units used for Bode plots and singular value (
sigma)plots.Youcanusethe
radio buttons in the
Frequency Domain field shown below to override the
default units for these plots.
By default, the LTI Viewer plots:
• Magnitude in decibels
• Phase in degrees
• Frequency in radians per second
Linestyle Preferences
You can use the controls in the Linestyle Preferences window to modify the
response curve plot styles.
To do this:
1 Open the Tools menu.
2 Select Linestyle Preferences.
