User`s guide

6 The LTI Viewer
6-40
load this model). With the Available LTI Viewer Configurations window
open:
1 Select the radio button for the two-plot configuration.
2 Use the pull-down tab next to 1. tosetthefirstplottonyquist.
3 Use the pull-down tab next to 2. to set the second plot t o bode.
4 Select OK.

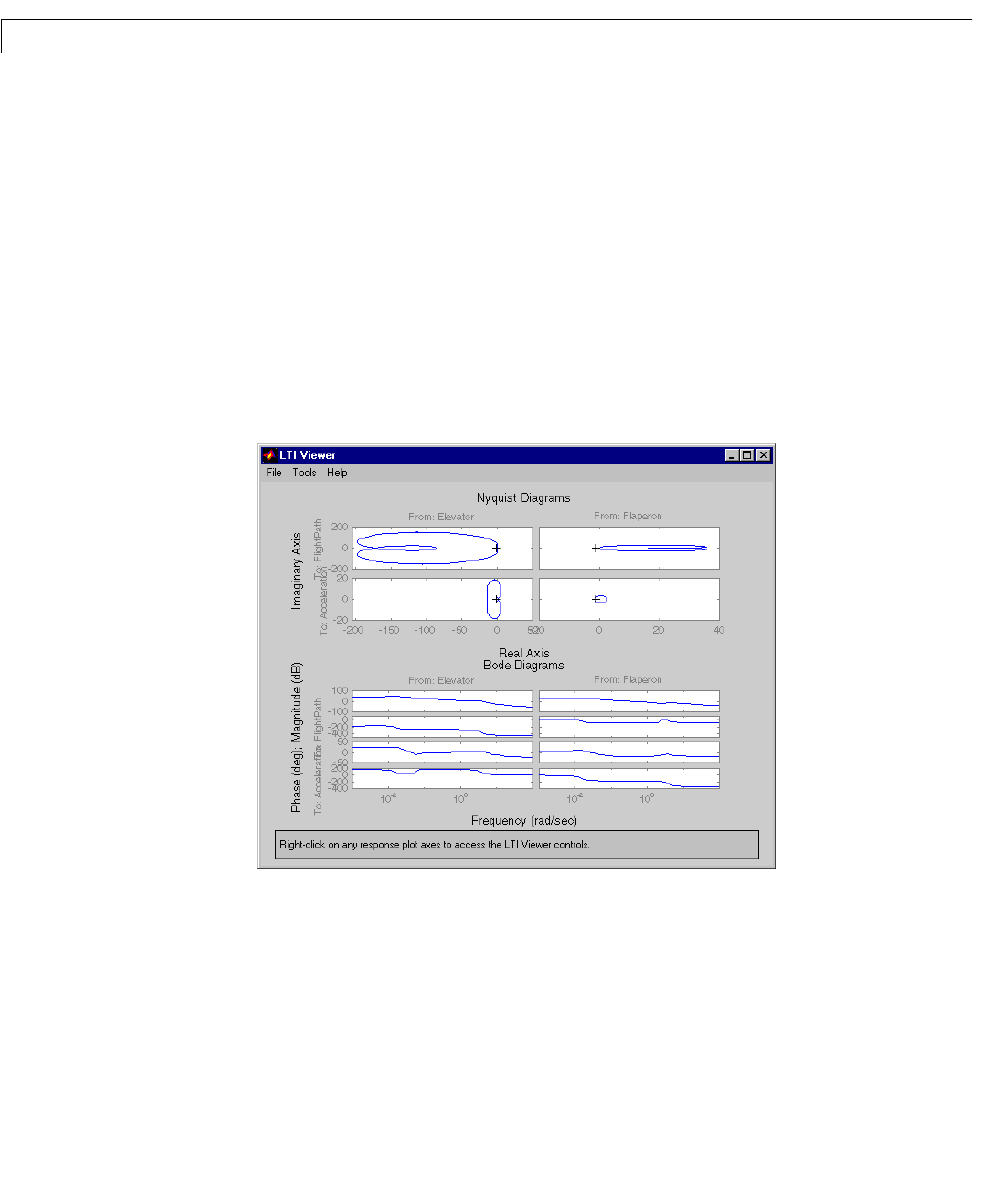

With the
ssF8 model loaded, the LTI Viewer now displays two plot types o n
separate plots:
Response Preferences
When you select Response Preference s from th e Tools m enu, the Response
Preferences
window shown below opens.
