The Right-Click Menus
6-23
Right-click on any part of the plot region (anywhere on the grid of plots). This
opens the following menu.

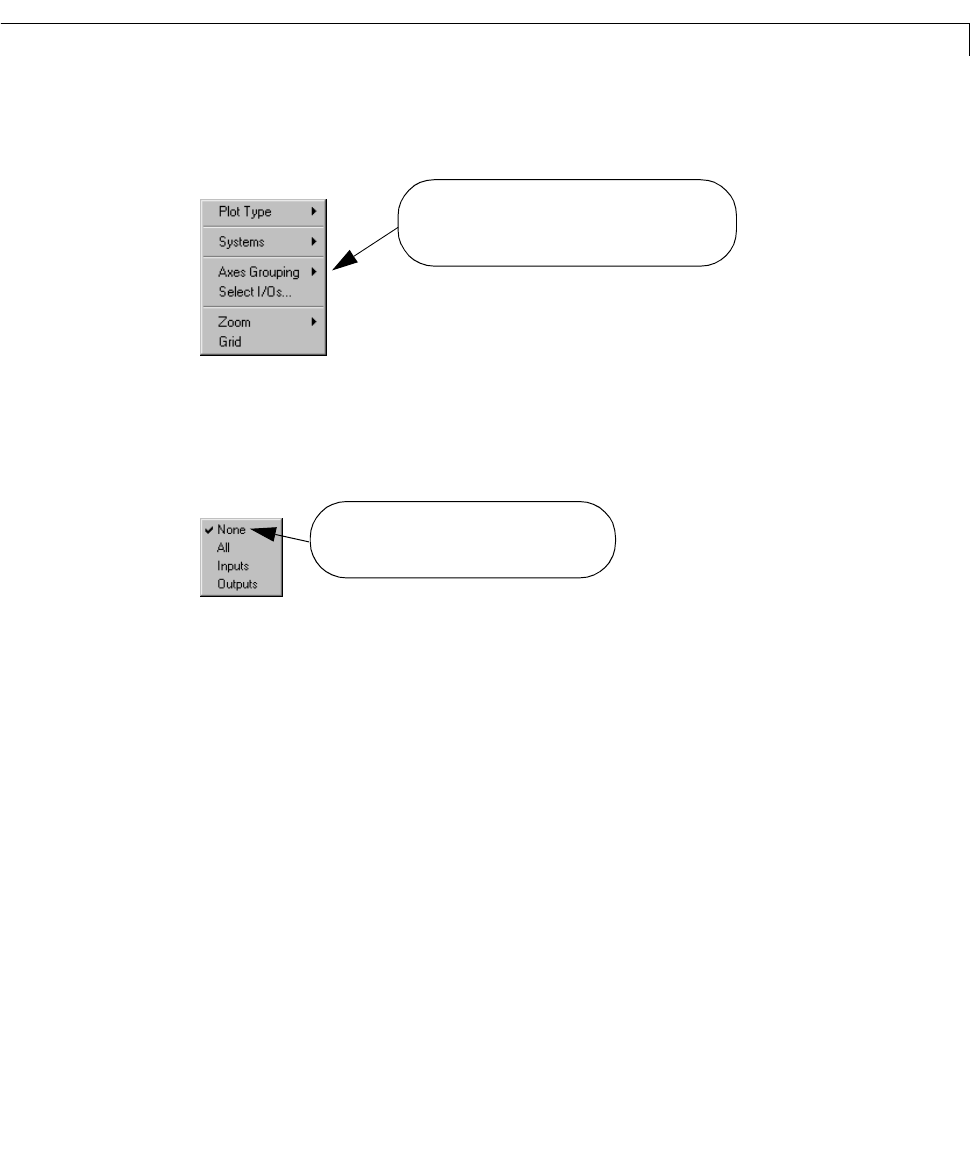

Figure 6-9: The Right-Click Menu for MIMO Models
The Axes Grouping Submenu
The Axes Grouping submenuisasfollows.
When you first load a MIMO model into the LTI Viewer, it displays each I/O
responsecurvein aseparate portionof theplot region.Forexample, ifyouhave
two inputs and three outputs, the LTI Viewer initially displays a three-by-two
grid of six separate plots. In this example, a two-by-two grid of four separate
plots is displayed in the plot region. This initial (default)
Axes Grouping
setting is indicated by (checked) submenu item, None.
The right-click menu for MIMO models has two extra menu
items:
Axes Grouping and Select I/Os.
Default Axes Grouping setting: Each I/O
response is displayed individually.
